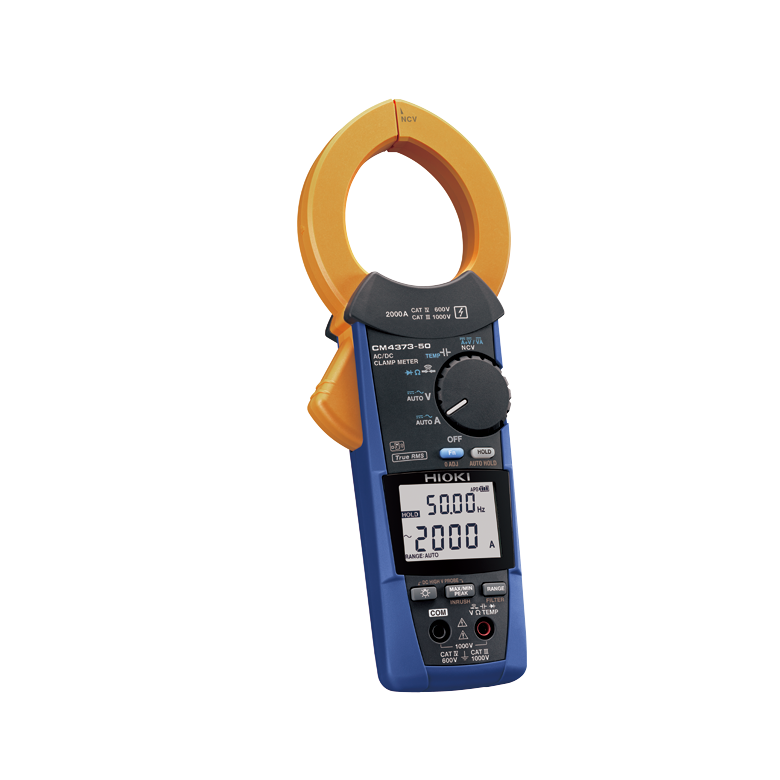

HIOKI CM4373-50 AC/AC Clamp Meter (TrueRMS)

DC Current range: 600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600 A range)

AC Current range: 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±1.3% rdg. ±0.3 A (at 600 A)

Crest factor:

600.0 A range: 3 or less

2000 A range: 2.84 or less

DC+AC Current range: 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 600 A)

DC Voltage range: 600.0 ｍV to 1000 V (When using P2000: 600.0 V to 2000 V)

AC Voltage range: 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V)

DC+AC Voltage range: 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 - 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)

Resistance range: 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)

Capacitance range: 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)

Frequency range: 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)

Temperature (K): -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C

Voltage detection: Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz

Dustproof, waterproof: IP54

Power supply: LR03 Alkaline battery ×2

Continuous use: 40 hr (without Z3210 installed), 24 hr. (with Z3210 installed and using wireless communications)

Other conditions: 100 A AC measurement, backlight off, 23°C reference value

Core jaw diameter: φ55 mm (2.17 in), Jaw dimension: 92 mm (3.62 in) W×18 mm (0.71 in) D

Dimensions and mass: 65 mm (2.56 in) W×250 mm (9.84 in) H×35 mm (1.38 in) D mm, 530 g (18.7 oz)

Included accessories: Test Lead L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1
