Hioki FT3470-52 HiTESTER MAGNETIC FIELD (2.000 μT~3.464 mT)
ManufacturerHIOKI(View more products from this manufacturer)
ModelFT3470-52
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
SPECIFICATIONS
- Magnetic flux density (Bandwidth): 10Hz~400kHz/10Hz~2kHz/2kHz~400 kHz
- Display:
+ Single axes X, Y, Z (2000 counts)
+ Composite RMS value R (3464 counts)
+ Magnetic flux density (unit: T, G, A/m)
+ Exposure level (unit: %)
- Magnetic flux density/ Ranges, Accuracy:
+ 2.000 μT~2.000 mT, 4 ranges, ±3.5% rdg. ±0.5% f.s
+ 3.464 μT~3.464 mT, 4 ranges, ±3.5% rdg. ±0.5% f.s
- Interface: Data saving with the PC application
- Other functions:
+ Up to 99 measured value data, Slow function
+ Holds the maximum value, Auto power off, Buzzer sound on/off
- Power supply:
+ LR6 alkaline battery ×4, Continuous use of 10 hours
+ Or AC ADAPTER 9445-02 (1.0 VA max. consumption)
- Product Net Weight:
+ Main unit: 830g
+ 100cm2 Sensor: 220g
+ 3 cm2 Sensor: 95g
- Product Size:
+ Main unit: 100*150*42mm
+ 100cm2 Sensor: φ122mm*295 mmL
+ 3 cm2 Sensor: φ27mm*165mmL
- Supplied accessories:

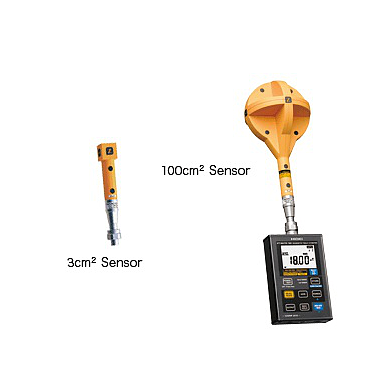

+ 100 cm2 Sensor ×1, 3 cm2 Sensor ×1, Instruction manual ×1
+ CD-R (PC application software DATA VIEWER for FT3470) ×1
+ USB cable ×1, LR6 alkaline battery ×4
+ AC ADAPTER (9445-02 or 9445-03 for EU) ×1
+ EXTENSION CABLE 9758 ×1, OUTPUT CABLE 9759 ×1, Carrying case ×1
- The warranty period: 12 month
