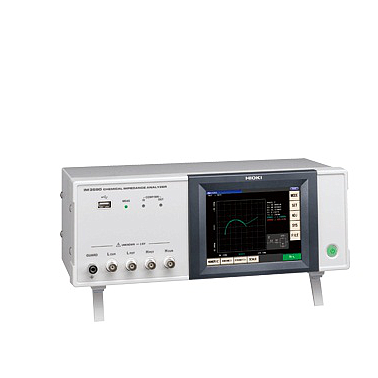

SPECIFICTIONS
- Measurement Modes: LCR, Transformer testing (N, M, ΔL), Continuous testing (LCR mode)
- Measurement Parameters: Z, Y, θ, Rs (ESR), Rp, DCR (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, N, M, ΔL, T
- Measurement Range: 100 kHz to 120 MHz
- Basic accuracy: Z : ±0.05%rdg. θ: ±0.03°
- Output impedance: 100 Ω, Low impedance high accuracy mode: 25 Ω
- Measurement signal level:
+[Normal mode]
_ V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
_ CC mode: 10 μA to 50 mArms, 10 μArms steps
+[Low impedance high accuracy mode]
_ V mode, CV mode: 5 mV to 2.5 Vrms, 1 mVrms step
_ CC mode: 10 μA to 100 mArms, 10 μArms steps
- Measurement Time: 2 ms (1 kHz, FAST, display OFF, representative value)
- Functions:
DC bias measurement, DC resistance temperature compensation
(converted reference temperature display), Comparator, BIN
measurement (classify function), Panel loading/saving, Memory function
- Interface: EXT I/O (Handler), USB communication (high-speed), USB memory
Optional: Choose 1 from RS-232C, GP-IB, or LAN
- Power supply: 100 to 240 VAC, 50/60 Hz, 50 VA
- Dimensions, mass: 330 mm (12.99 in) W × 119 mm (4.69 in) H × 168 mm (6.61 in) D, 3.1 kg (109.3 oz)
- Supplied accessories: Power cord ×1, Instruction Manual ×1, CD-R (Includes PC commands and sample software) ×1
- The warranty period: 12 month
