Output terminal Number of channels: 8, Connector: D-sub, half-pitch, 50-pin
Max. rated voltage to ground: 33 V rms AC or 70 V DC (between unit and output channels)
Logic output/Open collector output
Output mode 1
- Pattern output: Read frequency: 0 Hz to 120 kHz, 2048 logic patterns
- Pulse output: Frequency 0 Hz to 20 kHz, Duty 0.1% to 99.9%
Output mode 2
- Logic output: Output voltage level: 0 V to 5 V
- (H level: 3.8 V or more, L level: 0.8 V or less)
- Open collector output: Absolute maximum rated voltage for collector/emitter: 50 V
- Overcurrent protection: 100 mA
Other: Self-test function
Dimensions and mass: 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz)

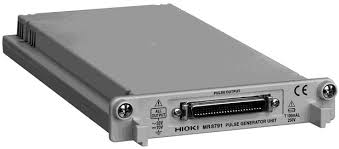

MR8791
