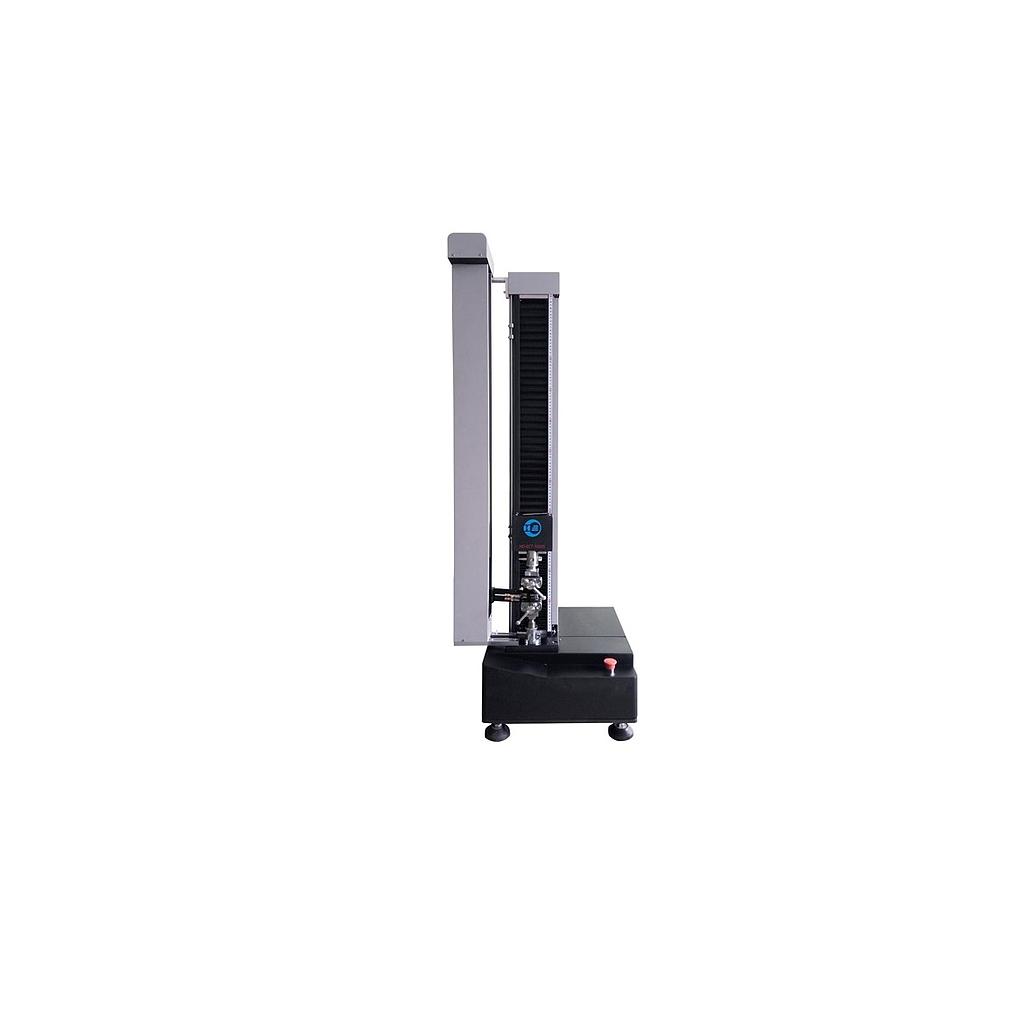

Hongdu HD-ECT-5000S Electronic Universal Testing Machine (5000N)

Input power: AC220VAC±10%, 5A, 50/60HZ

Output power: 750W

Accuracy level: 1 level

Maximum load value: 5000N

Test machine resolution: The maximum load is 1/250000, and the resolution is constant

Effective force range: 0.4% ~ 100%

Force measurement accuracy:  ±1%

Test speed range: 0 ~ 500mm/min

Displacement measurement accuracy: ±1%

Deformation measurement range: 0-600mm

Deformation measurement accuracy: ±1%

Motor: Servo motor

Test bench return function: Manual or automatic two options

Dimensions: 542×426×1850 (Width × depth × height)

Weight: Approximately 200kg
