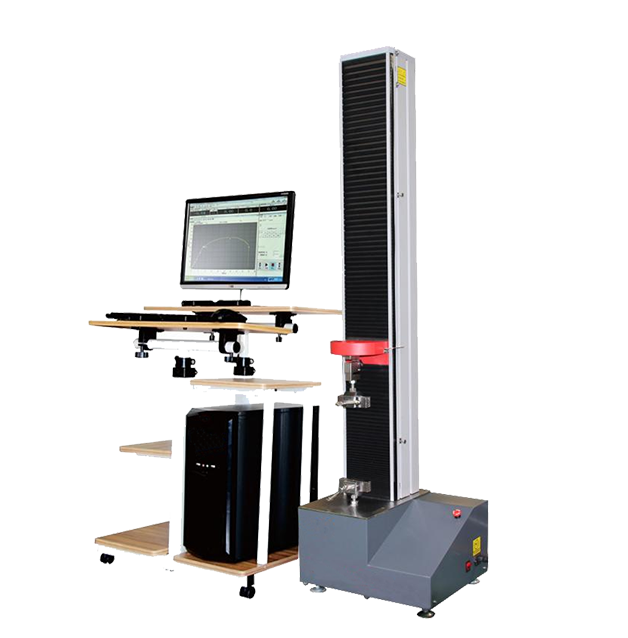

Max. Testing Force (KN): 0.2
Operation Mode: Computer Controlled
Measuring Range: 0.4%-100% of the maximum testing force
Relative Error on Indicated Values of Testing Force: Better Than ±0.5% of the Indicated Value
Error on Deformation Display: ±0.5%
Min. Force Resolution: 0.01N
Displacement Precision: ±0.5%
Deformation Accuracy: Better than ±0.5%
Speed Governing Range: 1-500mm/min
Testing Travelling Distance: >650 mm (can be customized according to needs)
Testing Space Adjusting Mechanism: AC Servo Motor, Drive by Synchronous Belt
Carried Standard: GB/T2611, ISO,ASTM,DIN
Protection Function: Overload Protection, Limit Protection
Power Supply: 220V
Weight (Approximate KG): 90KG
Clamp Type: Each One Piece of Standard Clamp for Tension Test and Compression Test (Optional Clamp If Needed;Special Clamp Can Also Be Customized for Customers)
