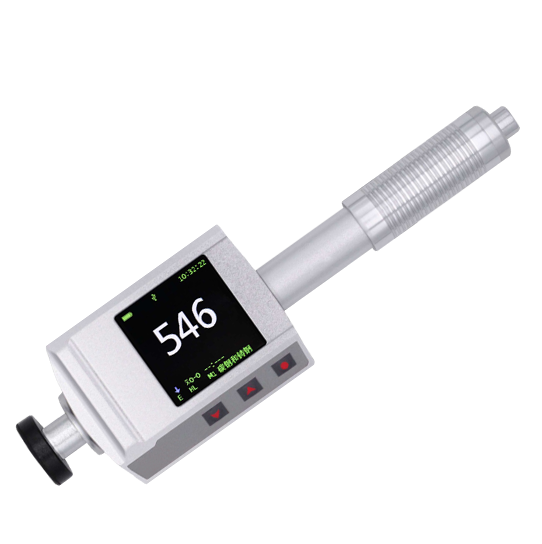

Principle: Leeb hardness measurement
Accuracy / Repeatability: ±0.3% at HL=800 / ±4HL
Display: High contrast color TFT 320 x 320
Hardness Scale: HLD/HRC/HRB/HB/HV/HSD/HRA/σb
Measuring Range: HL100~960 / HRC0.6~78 / HRB3~140 / HB24~1140 / HV24~1360 HS3~120 / HRA1~88 /σb (rm)24~3800N/mm²
Probe: E (diamond ball tip)
Memory: 30 files, 100 data for each file, can be saved and re-readable
Re-calibration: Coincident /Independent
Indicator: Low battery
Language: English, Chinese
Interface: USB/Bluetooth to PC for transferring data, wireless printing, USB for charging
Power on/off: Auto/Manual
Power supply: 3.7V Li-ion rechargeable battery
Working environment: -20°c~+70°c
Dimension (mm): 156x44x22(mm)
Net weight (g): 115
Standards: Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
Standard Delivery:
Main unit 1
Internal probe E 1
Test block D 1
Small support ring 1
Cleaning brush 1
3.7 V Li-ion rechargeable battery (internal) 1
Bluetooth module (internal) 1
Charger 1
USB cable 1
Data managing software 1
Operation manual 1
Test Certificate 1
Carrying case 1
Optional Accessory:
Bluetooth micro printer (powered by rechargeable battery)
Special support rings
Standard support ring for probe D
Small support ring
Impact body E
Test block D with certificate
Test block D w/o certificate
European adapter plug
