Testing Force: 3000kg (500kg, 750kg, 1000kg, and 1500kg available)
Indenter: Ф10mm carbide ball indenter (Ф 5mm available)
Testing Range: 8~650HBW (Expendable to 28-650HBW)
Max. Specimen Height: 320mm
Throat Depth: 100mm
Accuracy:
Hardness Range: HBW≤ 250; 250＜HBW≤450; HBW＞450
Permissible Error: ≤± 3％; ± 2.5％; ± 2.0％
Repeatability:
Hardness Range: BW≤ 250; 250＜HBW≤450; HBW＞450
Permissible Repeatability: ≤ 3.0 ％; ≤ 2.5 ％; ≤ 2.0％
Net Weight: 13.8kg
Standard Delivery:
Instrument Main Body
Hardness Block HBW/3000/10
Hardness Block HBW/750/05
Ф10mm Spare Carbide Ball Indenter
Hexagon Wrench
V-shaped Anvil
20X Measuring Microscope
Instrument Manual
Flat Anvil
Hemispherical Anvil
Brinell Hardness Table
Qualified Certificate

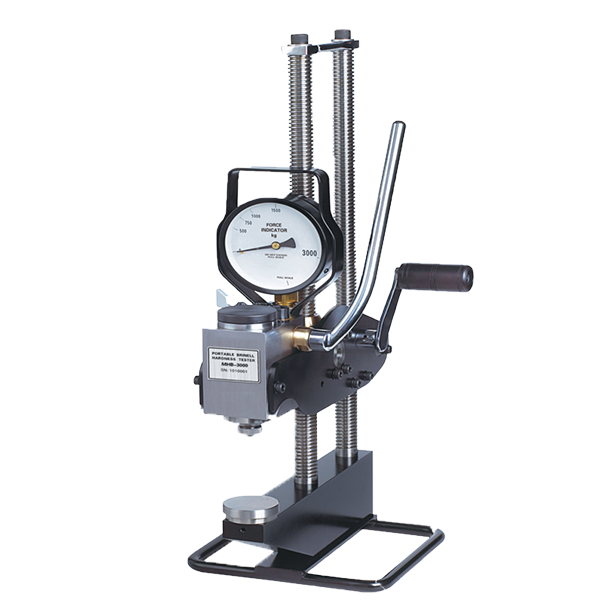

MHB-3000 is a movable Brinell hardness tester. It adopts hydraulic principle and applies 3000Kgf test force by hand operation. The key part of MHB-3000 is a hydraulic system in which a release valve is used to control the test force. When the test force rises 3000kgf, the release valve will open and pressure will fall down, and it needs to apply the test force repeatedly 3-4 times to make the needle of the pressure gauge point to 3000kgf for 3-4 times. Thus, it is equivalent to the test condition of Brinell hardness testing method to hold 3000kgf test force with 10mm ball.
