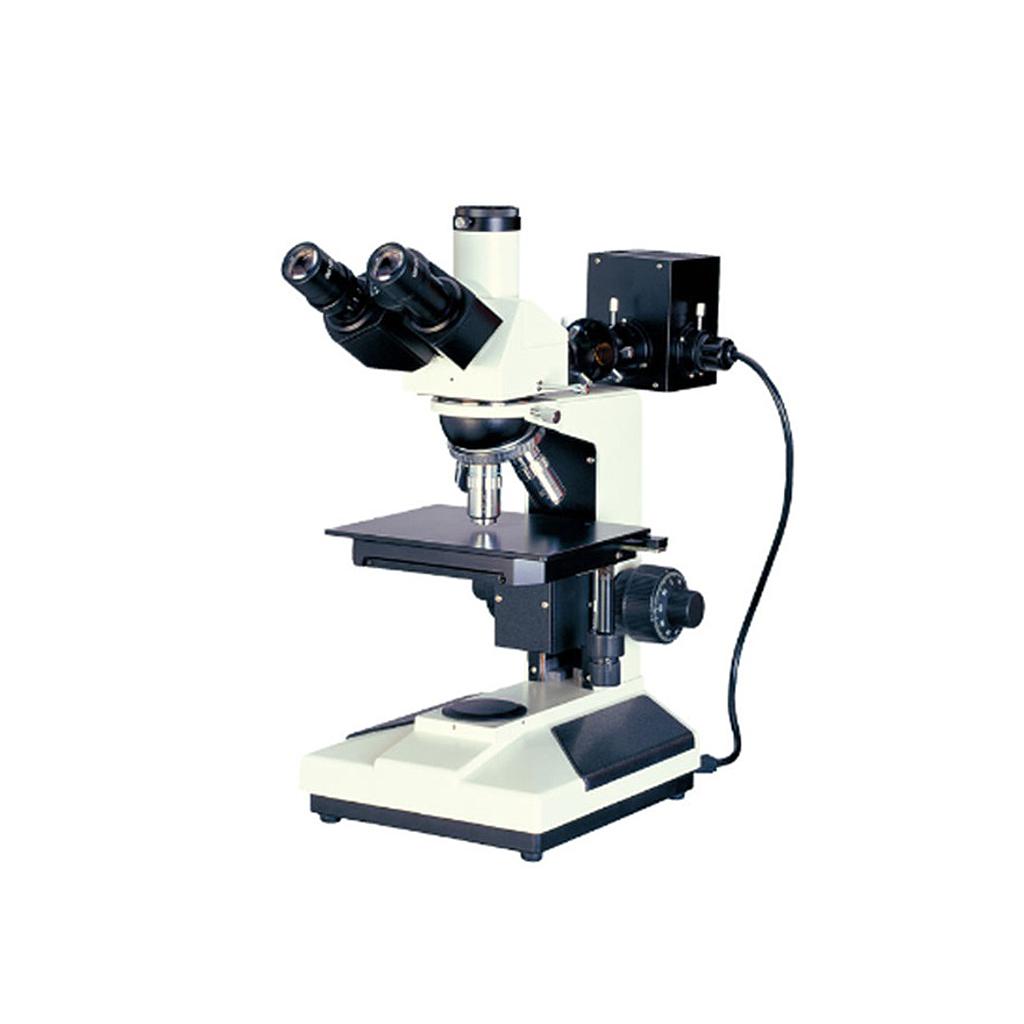

Application: used for microscopic observation of opaque objects
Eyepiece: Wide field WF10X(Φ18mm)
Objective
Long achromatic objective lens (no cover glass) PL 5X/0.12
Long achromatic objective lens (no cover glass) PL L10X/0.25
Long achromatic objective lens (no cover glass) PL L40X/0.6
Long achromatic objective lens (no cover glass) PL L60X/0.75
Observation tube: Compensation Free Trinocular, 30° tilt, (built inspection polarizer, can be switched)
Lighting system: 6V 20W, Halogen lamp, brightness can be adjusted
Epi-illumination system: Epi-illuminator with optical measurement, aperture diaphragm, polaroid. With frosted glass; yellow, green and blue color filters basic configuration
Focusing mechanism: Coaxial coarse focus, Micro-grid value:2μm, Coarse dynamic elastic adjustable, with lock and limit device
Converters: Four holes (Backward ball bearing inner locating)
Stage: Double mechanical movable (size: 185mmx140mm, moving range: 75mmx50mm)
