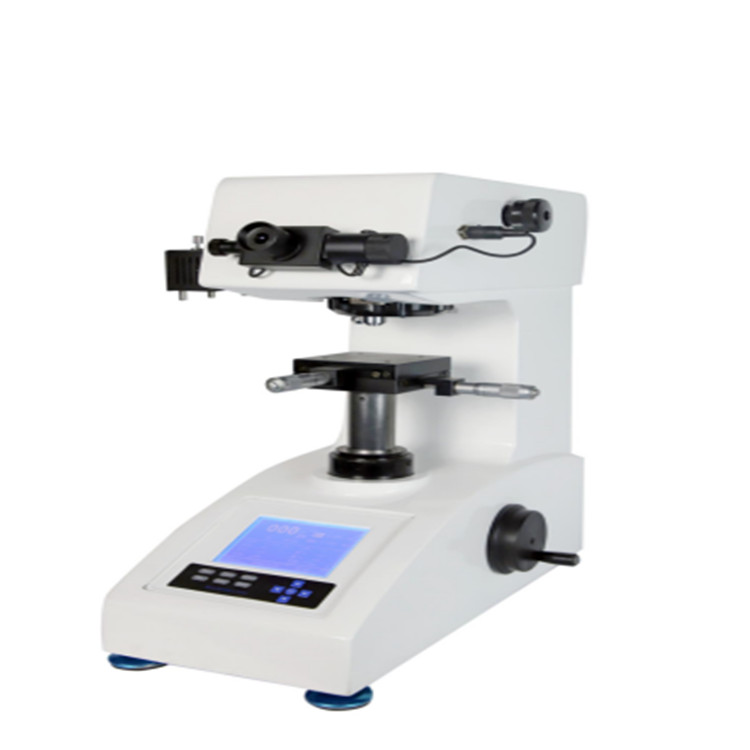

HST HVS-1000A Automtaic Turret Digital Display Micro-Vickers Hardness Tester (5~3000HV)

Application: Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.

Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)

Minimum test unit: 0.031µm

Exchange Scales: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T

Measuring range: 5~3000HV

Test method of force application: Automatic( loading, dwelling,unloading )

Test microscope magnification: 100X（objective）400X(measurement)

Test load dwell time: 0~60s

X-Y table: size：100*100mm Mx. movement：25*25mm

data output: LCD display，Built-in printer and rs-232 interface

Max Height of Specimen: 110mm

Distance from the center of the head to the outer wall: 110mm

Power supply: AC220V+5%，50-60Hz

Dimensions: 405*290*480mm

Weight: 40Kg
