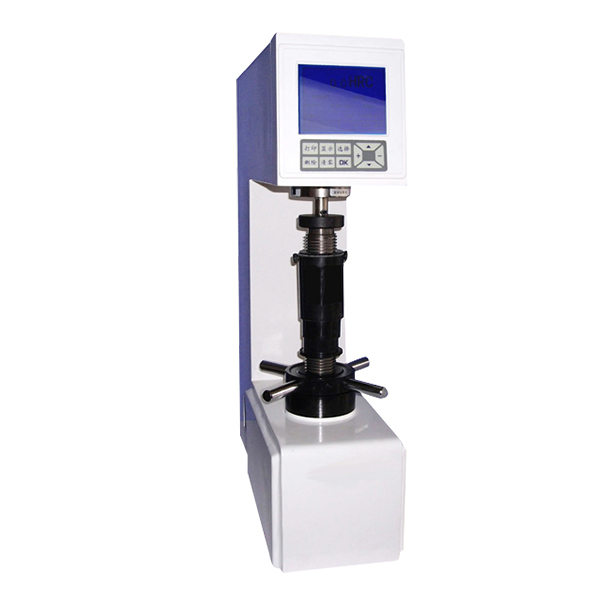

HST XHRS-150 Digital Plastics Rockwell Hardness Tester (1471N)

1. The Initial Test Force:  98.07N;  Tolerance: ± 2.0%

2. The Total Test Force:  588.4N, 980.7N, 1471N;  Tolerance: 2.0%

3. The Indenter Specifications:

3.1 The φ3.175mm ball indenter

3.2 The φ6.35mm ball indenter

3.3 The φ12.7mm ball indenter

4. The Power Source:     AC220V±5%, 50-60 HZ

5. Time-delayed control:   2-60 seconds, adjustable

6. The Max. Height of the Specimen Tested:   175 mm

7. The Distance from the Ball Indenter Center to the Instrument Body:   165mm.

8. The Overall Dimension (Length×Width ×Height):   520×215×700 (mm)

9. The Net Weight of the Tester:   78Kg (Approx)
