Measurement range: 3000A ACRMS
Output signal (@ 1000ARMS, 50Hz): 85mV AC
Input impedance: 236Ω ± 23Ω
Output impedance: 399.2Ω
Accuracy (at 25°C): ± 0.5%rdg (45 ÷ 65Hz)
Linearity (from 10% to 100% of range): ± 0.2% rdg
Frequency range: 10Hz ÷ 20kHz
Phase error: < ± 1° (45 ÷ 65Hz)
Position sensitivity: ± 2% rdg
Noise: 1mV ACRMS
Overvoltage category CAT III 1000V ACRMS Phase- Earth
Insulation: double insulation
Pollution degree: 2 according to IEC/EN610101-1

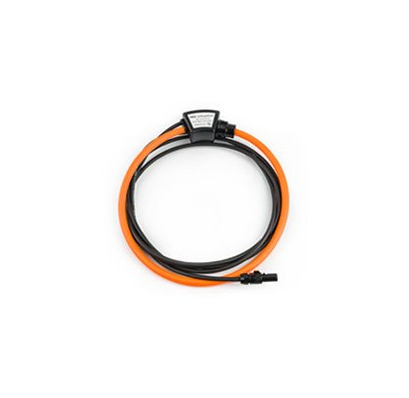

Flexible clamp length (double insulation): 900 mm
Maximum conductor diameter: 274 mm
Instrument connection cable length: 2m (double insulation)
Output connection: 2m cables with Hypertac connectors
Operating temperature: -20°C ÷ 80°C
Storage temperature: -40°C ÷ 90°C
Temperature coefficient: ± 0.05 % rdg per °K
Operating humidity 15% ÷ 85% H.R. without condense
Mechanical protection: IP65
Safety: EN 61010-1: 1993 + A2:1995
EMC: EN 61326 :1997 + A1 :1998
