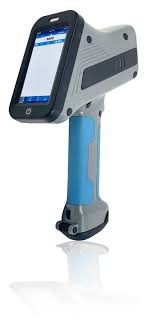

HUATEC HXRF-145JP Detector Handheld Alloy Analyzer with camera (1080 * 720)

Alloy Elements: Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, And Bi,total 30 ElementsExcitation

Source: 45KV/200uA Silver Target End Window Integrated Micro X-ray Tube And High Voltage Source

Detector: High Performance Silicon Drift SDD Detection Module

Display:

1. Semi Transparent And Semi Reflective Industrial Grade Customized Touch Screen ≥ 5 Inches

2. Resolution 1080 * 720

File: E-mail Send, Bluetooth Synchronous Transmission, Software Synchronous Transmission

Camera: Equipped With A Built-in 5 Megapixel High-definition Camera Function, It Can Take Photos Of The Tested Object For Easy Management

Data Transmission Method: Wifi、Bluetooth

Operating Environment Temperature And Humidity: Humidity≤90% -20℃ - +60℃

Fluorescence Thickness Measurement: Optional

Weight: ≤1.75KG（Including Battery）

Size: 245mm(L)X91mm(W)X319mm(H)
