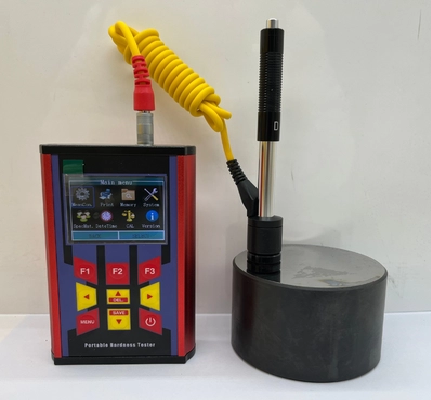

HUATEC RHL-60 Hardness Testers For Metal (HL, HB, HRB, HRC, HRA, HV, HS)

Testing Range: HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88),HRB(13.5~101.7)

Testing Direction: 360°

Hardness Scales: HL, HB, HRB, HRC, HRA, HV, HS

Testing result on display: HL value and the corresponding value of selected hardness scale.

User defined material: 5 kind. With setting guide

Display: 320x240 true color TFT screen

Indication Error: ±6HLD (D impact device)

To identify probe: automatically, or by manual.

Data Memory: Max 600 groups (relative to impact times 1~32 adjustable)

Power supply: Rechargeable li-battery, 3.7v

charger: 5V/1000mA, charging time 2.5～4.5

Communication port: USB2.0

Size: 130x83x32mm

Weight: 0.6kg

Working Condition:

- Working temperature: -20°C~55°C

- Storage temperature: -20°C~75°C

- Relative humidity: ≤90％

- The surrounding environment requires no vibration, no strong magnetic field, no corrosive medium and no serious dust

Standard Delivery:

- Main unit: 1 PC

- Standard D Impact Device: 1 PC

- Standard Calibration Block: 1 PC

- Standard Support Ring: 1 PC

- Brush: 1 PC

- USB Cable, charger: 1 PC

- PC Software: 1 PC

- User Manual: 1 PC

- Instrument Case: 1 PC
