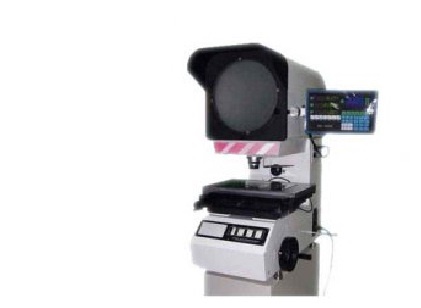

HUATEC VP12-2515 Profile Projector
Manufacturer: HUATEC Model: VP12-2515 Origin: China - Request a Quotation
- Contact
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and the measuring checking department for checking product quality. VP12 can inspect all kinds of surface and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
It has foot-switch, LCD display digital readout DC-5000, mini-printer and 2D measuring software, and other optional accessories for upgrade.
The Technical Specification of Profile Projector VP12 series (Unit: mm)
|
||||||
1, Model
|
VP12-1510(Z)
|
VP12-2010(Z)
|
VP12-2515(Z)
|
|||
2, Travel of X and Y axis
|
150x100
|
200x100
|
250x150
|
|||
3, Metal stage dimension
|
354 x 228
|
404 x 228
|
450 x 280
|
|||
4, Glass Stage Dimension
|
210 x 160
|
260 x 160
|
306 x 196
|
|||
5, Travel: Z axis
|
100 (for focusing)
|
|||||
6, Measuring accuracy (μm)
|
≤3.0 + L/75
|
|||||
7, Resolution (X/Y-axis)
|
0.001
|
|||||
8, Projector Screen
|
◇ Size (mm)
|
Ø308, effective range≥Ø300mm
|
||||
◇ Rotation range
|
0 ~ 360º
|
|||||
◇ Angle resolution
|
1’ or 0.01º
|
|||||
9, Objective
|
◇ Magnification
|
10X(Std.)
|
20X(Opt.)
|
50X(Opt.)
|
100X(Opt.)
|
|
◇ Object view
|
Ø30
|
Ø15
|
Ø6
|
Ø3
|
||
◇ Working distance
|
77.7
|
44.3
|
38.4
|
25.3
|
||
10, Data Processor
|
DC-3000 multi-function data processing system:
1. Gathering the data and measuring point, circle, angle and distance
2. Coordinate rotation
3. RS-232 data output
|
|||||
11, Illumination
|
Transmission and reflection light source: 24V/150W-halogen lamp
|
|||||
12, Power
|
110V/220V(AC) 50/60Hz
|
|||||
13, Light source cooling
|
Forced air cooling
|
|||||
14, Instruments dimension (mm)
|
780 x 780 x 1100
|
780 x 780 x 1100
|
810 x 780 x 1100
|
|||
15, Weight (Kg)
|
160
|
170
|
180
|
|||
16, Remark
|
The letter Z delegate the image is erect.
|
