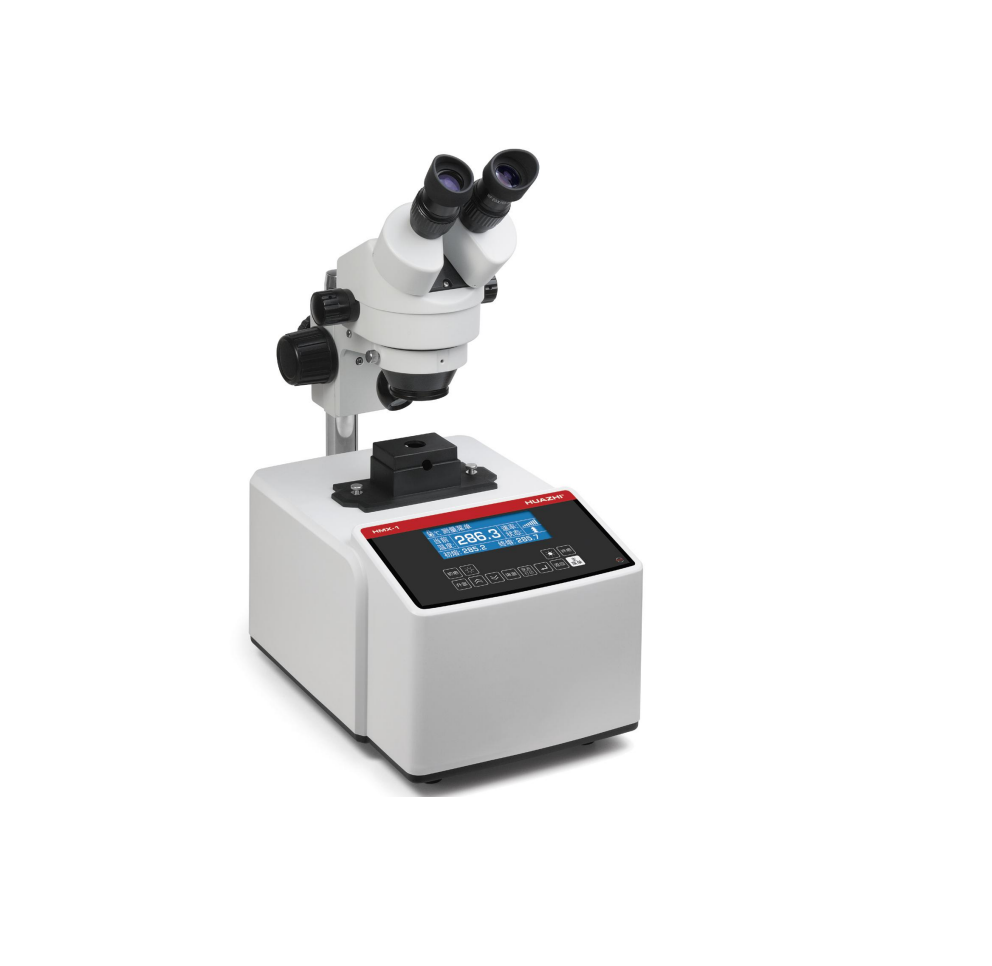

HUAZHI HMX-1B Laboratory Binocular Microscope Melting Point Apparatus (~320℃)

Observation Method: Observe melting process via binocular microscope

Sample Loading Way: Capillary + cover-glass method

Temperature Range: Ambient ~320℃

Minimum Temperature Resolution: 0.1℃

Ramp Rate: 1.0, 3.0, 5.0, 10.0℃/min, full speed

Ramp Rate Error: ≤10%

Accuracy: ±0.8℃（﹤200℃）; ±1℃（≥200℃）

Reproducibility: 0.4℃（ramp rate 1.0℃/min）

Heating/Cooling Time: ≈8mins/8mins（50℃~320℃）

Number of Capillaries: 1

Capillary Dimensions: Φ1.4mm outer diameter, Φ1.0mm inner diameter, 90mm length; Fill height 3mm~5mm

Display: 4.3 inch LCD

Size of Cover-Glass: 18×18×0.17mm

Microscope Type: Binocular

Optics Magnification: 40X~100X

Communication Interface: USB for PC + RS232 for printing

Print Function: Included

Measurement Report: Print or store in PC via APP

User Management: ×

Pre-set Measurement Method: ×

Power Supply: 110/220±10%VAC, 50/60Hz/100W

Dimensions (L×W×H): 400×245×550 (adjustable)mm

Weight: About 8kg
