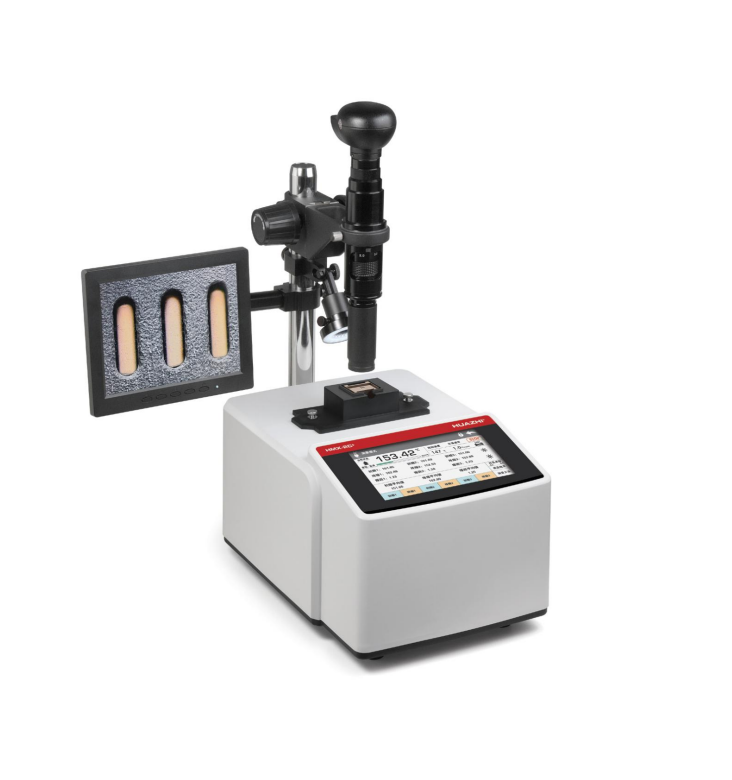

HUAZHI HMX-2C+ Laboratory Microscope-type Video Melting Point Apparatus (~400℃)

Observation Method: Observe melting process via video microscope

Sample Loading Way: Capillary + cover-glass method

Temperature Range: Ambient ~400℃

Minimum Temperature Resolution: 0.01℃

Ramp Rate: Stepless setting at 0.1℃~20℃/min

Ramp Rate Error: ≤5%

Accuracy: ±0.4℃（﹤200℃）; ±0.7℃（≥200℃）

Reproducibility: 0.1℃（ramp rate 0.2℃/min）; 0.3℃（ramp rate 1℃/min）

Heating/Cooling Time: ≈7mins/9mins（50~400℃）

Number of Capillaries: 3

Capillary Dimensions: Φ1.4mm outer diameter, Φ1.0mm inner diameter, 90mm length; Fill height 3mm~5mm

Display: 8" HD color screen for melting result; 7" HD color touch-screen

Size of Cover-Glass: 18×18×0.17mm

Video System: 700 line analog high-definition camera

Optics Magnification: 19X~135X

Communication Interface: USB communication port + RS232 printing port + USB port to export data

Print Function: Included

Measurement Report: Auto generate and store, or store in PC via APP

User Management: Two grades: Administrator + Operator

Pre-set Measurement Method: Up to 32 methods

Power Supply: 110/220±10%VAC, 50/60Hz/100W

Dimensions (L×W×H): 400×245×550 (adjustable)mm

Weight: About 7kg
