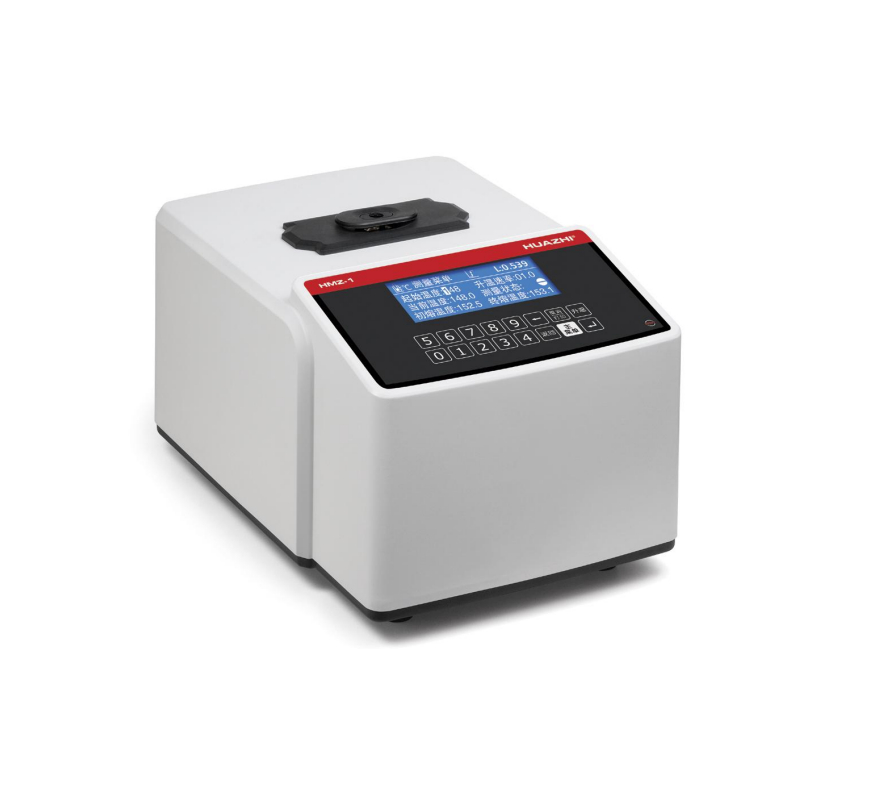

HUAZHI HMY-1A+ Lab Professional Type Drug Melting Point Apparatus (~280℃)

Test Method: Fully automatic

Sample Loading Way: Capillary tube method

Temperature Range: Ambient ~280℃

Minimum Temperature Resolution: 0.1℃

Ramp Rate: Stepless setting at 0.1℃~10℃/min

Ramp Rate Error: ≤5%

Accuracy: ±0.4℃（＜200℃）, ±0.7℃（≥200℃）

Reproducibility: 0.2℃（ramp rate 0.2℃/min）; 0.3℃（ramp rate 1.0℃/min）

Heating/Cooling Time: ≈2mins/2.5mins（50℃~280℃）

Measurement Character: 4 melting point determination modes

Number of Capillaries: 1

Capillary Dimensions:

Liquid capillary: Φ4.5×Φ2.5×50mm

Sample capillary: Φ1.4×Φ1.0×90mm

Fill Height:

Sliding sample: 10mm (liquid level is above sliding sample by 10mm)

Regular samples: 3mm~5mm

Types of Liquid: Support calibrate 2 liquids simultaneously

Display: 4.3 inch LCD

Communication: USB for PC + RS232 for printing

Print Function: Included

Measurement Report: Support printing or store in PC via APP

Power Supply: 110/220±10%V AC, 50/60Hz/100W

Dimensions / Weight: 345(L)×245(W)×215(H)mm / 4.5kg
