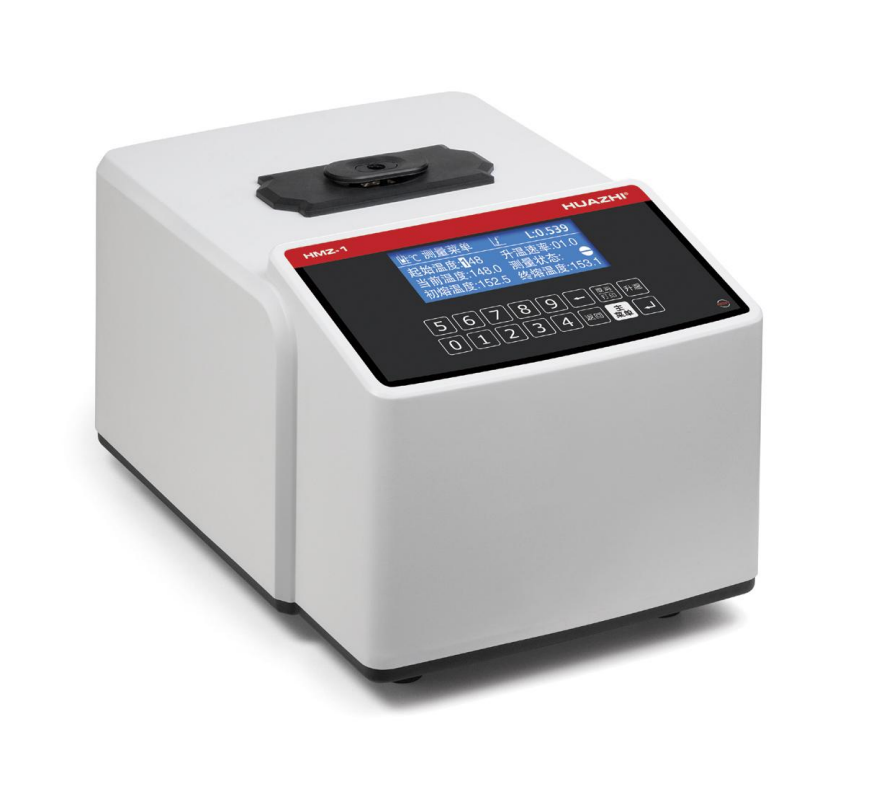

HUAZHI HMZ-1A Laboratory Professional Type Micro Processor Melting Point Apparatus (~320℃)

Test Method: Fully automatic

Sample Loading Way: Capillary tube method

Temperature Range: Ambient ~320℃

Minimum Temperature Resolution: 0.1℃

Ramp Rate: Stepless setting at 0.1℃~10℃/min

Ramp Rate Error: ≤5%

Accuracy: ±0.4℃（＜200℃）, ±0.7℃（≥200℃）

Reproducibility: 0.2℃（ramp rate 0.2℃/min）; 0.3℃（ramp rate 1℃/min）

Heating/Cooling Time: ≤2mins/3mins（50℃~320℃）

Number of Capillaries: 1

Capillary Dimensions: Φ1.4mm outside diameter, Φ1.0mm inside diameter, 90mm length; Fill height 3mm~5mm

Display: 4.3 inch LCD

Communication: X

Print Function: X

Power Supply: 110/220±10%V AC, 50/60Hz/100W

Dimensions (L×W×H): 345×245×215mm

Weight: About 4.5kg
