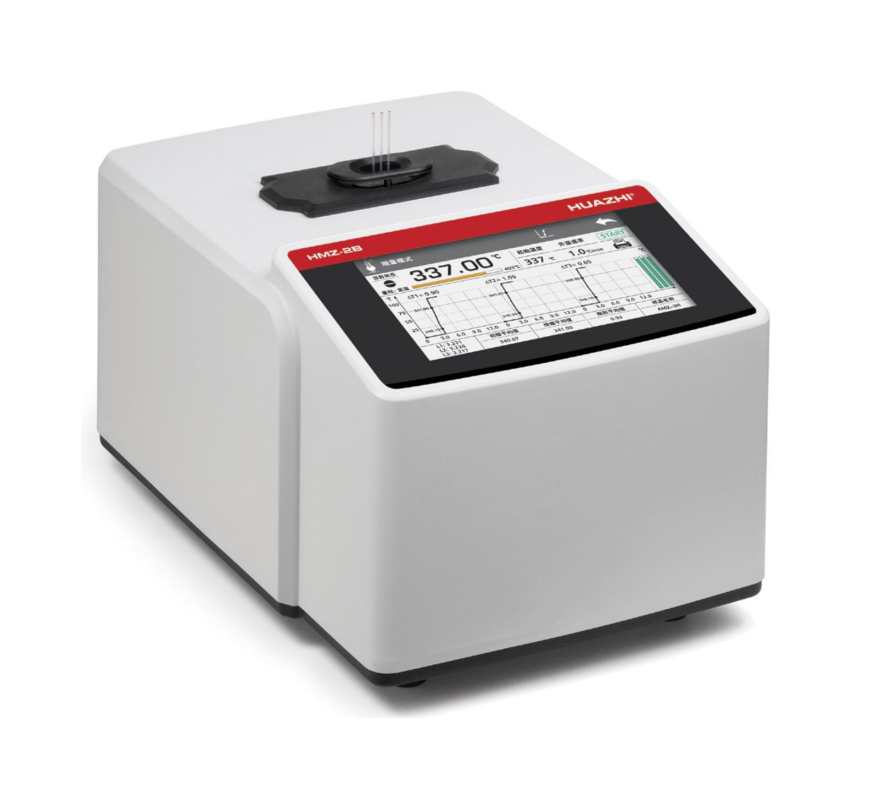

HUAZHI HMZ-2B Laboratory Professional Type Micro Processor Melting Point Apparatus (~400℃)

Test Method: Fully automatic

Sample Loading Way: Capillary tube method

Temperature Range: Ambient ~400℃

Minimum Temperature Resolution: 0.01℃

Ramp Rate: Stepless setting at 0.1℃~20℃/min

Ramp Rate Error: ≤5%

Accuracy: ±0.2℃（﹤200℃）; ±0.4℃（≥200℃）

Reproducibility: 0.1℃（ramp rate 0.2℃/min）; 0.2℃（ramp rate 1℃/min）

Heating/Cooling Time: ≈6mins/5.5mins（50~400℃）

Number of Capillaries: 3

Capillary Dimensions: Φ1.4mm outer diameter, Φ1.0mm inner diameter, 90mm length; Fill height 3mm~5mm

Display: 7" HD colour touch screen, 1024×600 HD screen; Display melting curve in real time

Communication Interface: USB communication port + RS232 printing port + USB port to export data

Print Function: Included

Measurement Report: Auto generate and store, or store in PC via APP

User Management: Two grades: Administrator + Operator

Power Supply: 110/220±10%V AC, 50/60Hz/120W

Dimensions (L×W×H): 345×245×215mm

Weight: About 4.5kg
