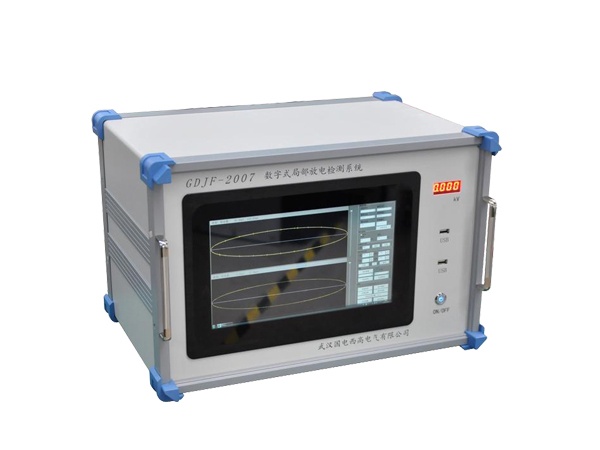

HV HIPOT GDJF-2007 Digital Partial Discharge Analyzer (6pF-250μF)
Manufacturer: HV HIPOT Model: GDJF-2007 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Specification
Capacitance range: 6pF-250μF
Sensitivity: 0.1 pc
Measurement channel: 2pcs independent channels
Sampling accuracy: 12Bit
Sampling rate: Max. 100MHz per channel
Measurement range: 0.1pc-10000nc.
Dynamic range: >80db.
Measurement frequency band: 10kHz-1MHz at 3db.
Frequency range of test power: 50-400Hz.
Programmable filter: Low frequency: 10K, 20K, 40K, 80K; High frequency: 100K, 200K, 300K, 1000K.
Environmental temperature: -15℃--50℃
Relative humidity: ≤95%(20℃)
Altitude: ≤3000 m.
Impact ability: 5000 V at each input port and power terminal (positive, negative and AC)
Power input: AC 220 V ±10%, 45-65 Hz, power <500 W.
Weight: About 15 kg.
Dimension: 58*36*32 mm
Accessories
Main unit: 1pcs
Calibration pulse generator: 1pcs
Impedance unit: 2pcs
Coaxial cable: 2pcs
Earth cable: 1pcs
Wireless mouse: 1pcs
Power cord: 1pcs
Connection cable: 2pcs
Clamp: 2pcs
Charger: 1pcs
User’s guide: 1 copy
Factory test report: 1 copy
