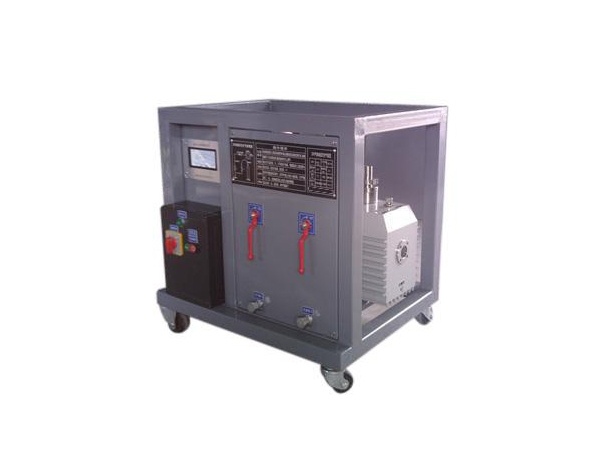

Rotary-vane vacuum pump Brand: Domestic brand [2xz-15B]
Cooling type: long-time working with air cooling type for vacuum pump
Moving type: With wheels, moving by humanpower(light)
Working principle: high pressure ball valve, vacuum gauge assists vacuum pump to vacuumizing
Pumping speed(m3/h): 55
Ultimate vacuum(absolute pressure Pa): 10
Initial pressure of vacuumizing: 53kPa
Final pressure of vacuumizing: 30Pa
Recharge speed: 5m3/h
Vacuum measuring type: Pointer vacuometer
Measure range of vacuuometer: 0-103pa
Yearly leakage rate: ≤1%
Working temperature:
upper limit: +40℃
lower limit: +5℃, -10℃, -30℃
Noise: ≤60dB SPL
Power supply: AC 3 phase/4 core 380V±10%, 50Hz
Power(KW): 1.5
SF6 special ball valve: high pressure vacuum dual purpose ball valve(13.5MPa, no leakage)
Vacuumizing port: M2 7×1.5 three channels for option
Steel wire braiding rubber hose will be supplied before leaving factory: M27×1.5×10m/piece
Weight(kg): 66
Size (mm): 800*560*770(or reference)
Appearance color: Silver gray
