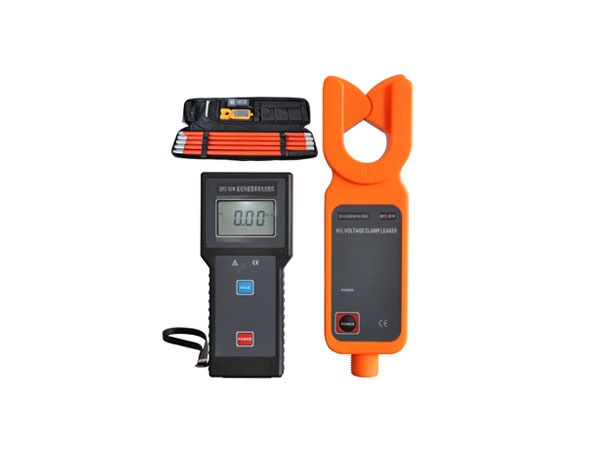

Function: After checking high accurate leakage, the MOA is judged online probably with spot, moisture inside or agin.
Power supply: DC6V Alkaline battery (1.5V AAA×4)
Testing way: Clip CT by integral way
Transmit: 433MHz wireless transmit ion, transmit in 30m area
Display mode: Four digital LCD display, which can be used in dark places.
LCD size: 47mm×28.5mm
Instrument size: HV detecter:68mm×245mm×40mm
Receiver:75mm×170mm×30mm
Clip size: φ33mm
Sampling speed: 2/s
Measurement range: AC 0.000mA~30.00mA (50/60Hz automatically)
Resolution: 1uA
Shift: AC 0.000mA~30.00mA shift automatically
Accuracy: ±2%±5dgt (23℃±5℃, below 80%RH)
Storage: 99 data, MEM means direction, FULL means the storage is full.
Data hold: Press HOLD button to hold the data, and press it again to cancel it.
Checking data: MR button can read the stored data up and down.
Overflow: OL shows overflow the testing range
No signal: no-- shows that the receiver has not receive the signal
Auto off: The instrument will turn off automatically after 5min to save the battery
Battery voltage: When the battery voltage is below 4.8V, shows that it is time to change the battery
Weight: Detector (with battery):335g, Detector(with insulating rod and battery):2.5Kg
Environment temperature and humidity: -20℃~40℃; below 80%Rh
Storage: -20℃~60℃; below 70%Rh
Interference: No 433MHz frequency signal interference
Insulating rod size: φ32mm,1m/pc(5pcs)
Insulation strength: Single insulating rod AC110kV/rms, the shell of the HV detecter between the iron core: AC1000V/rms
Structure: Drip tight type II
