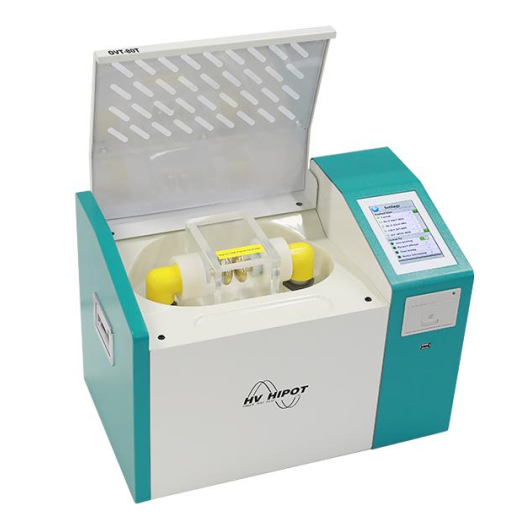

HV HIPOT OVT-80T Insulation Oil Tester (80kV)

Output Voltage: 0~80 kV

Voltage Distortion Rate: <3%

Boost Speed: 0.5~5.0 kV/s, adjustable (under user-defined mode)

Standby Time: 0~15 minutes

Voltage Boost Interval: 0~5 minutes, adjustable (under user-defined mode)

Number of Voltage Boosts: 1~10 times

Stirring Time: 0~120 s

Booster Capacity: 1.5 kVA

Measurement Accuracy: ±3%

Stop Boosting Voltage: 10~80 kV

Power Supply Voltage: AC 230 V ±10%, 50 Hz ±1 Hz

Power Consumption: <200 W

Applicable Temperature: 0°C~45°C

Applicable Humidity: <75% RH

Dimensions: 462 × 278 × 330 mm
