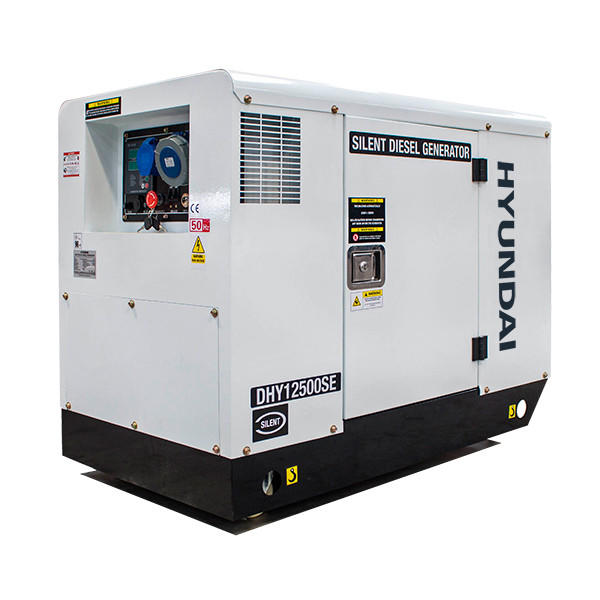

Hyundai DHY12500SE 10kW / 12.5kVA* Diesel Standby Generator (230v Single Phase Output, 3000rpm, Quiet Silenced Canopy)

Rated/Prime kVA*: 12.5

Rated/Prime kW: 10

Max/Standby kVA*: 13.75

Max/Standby kW11: 11

Phase: Single

Voltage: 230

Connection Method(s): Sockets - 1 x 32A, 1 x 63A

Rated Speed (RPM): 3000

Frequency (Hz): 50

Max/Continuous Current (Amps): 47.83/43.48

Power Factor (Cosφ): 1

Fuel/Power Source: Diesel

Fuel Tank (Litres): 50

Runtime (Hours) @ 100% Load: 12

Noise Level @ 1m 75%81.5 load (dB): 81.5

Noise Level @ 7m 75% load (dB): 70

Hyundai Diesel Engine ModelHY290F

Power Output (hp): 20

Engine Displacement (CC): 954

No. of Cylinders: 2

Recommended Oil Type15w40 / 10w40

Oil Capacity (Litres): 3

Oil Filter Part No.: 3049050901800

Aspiration: Natural

Fuel Regulation/Governor System: Mechanical

Fuel Filter Part No.: 3049051001000

Cooling: Forced Air-Cooled

Breakers: Yes

Alternator Type: Brushed

Voltage Regulation: AVR

Air Filter Part No.: 3049050700303

Net Weight (kg): 270

Gross Weight (kg): 290

Wheel Kit?: Yes

Dimensions L x W x H (mm): 1175 x 695 x 1050

Battery (Ah): 45

ATS / MTS Compatible: Yes

Control Panel: HJ-103A

Model EAN: 600231973526

Assembly Required?: Yes - some assembly may be required

Manuals & Spec Sheets:
