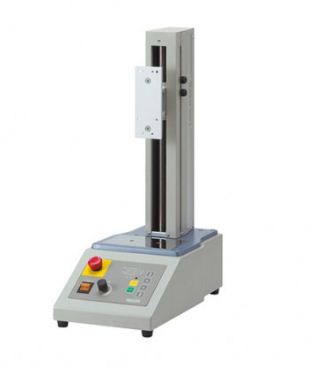

IMADA MX-500N Force testing machine (The force gauge is not included.) (500N (50kgf))

Capacity500N (50kgf)

Max. Sample Height (*1)235mm

Test speed10 to 300mm/min

Gauges that can be combined (*2)Any force gauges except high capacity model force gauges

Load cell can NOT be combined.

FunctionManual mode, Single mode, Continuous mode

ControlEmergency button, Operation control by load value(*3), Overload prevention(*3)(*4)

Safety devicesStroke limit, emergency stop button

PowerAC100V to 240V, free input

SizePlease refer to dimensions.

WeightApprox. 13kg

OptionLength scale, Long stroke, Speed range change, Speed and length scale

AccessoryGrip mounting adapter(GF-1),Instruction manual, Power cable, Gauge mounting plate, Spare fuse, and Tools.

Datasheet
