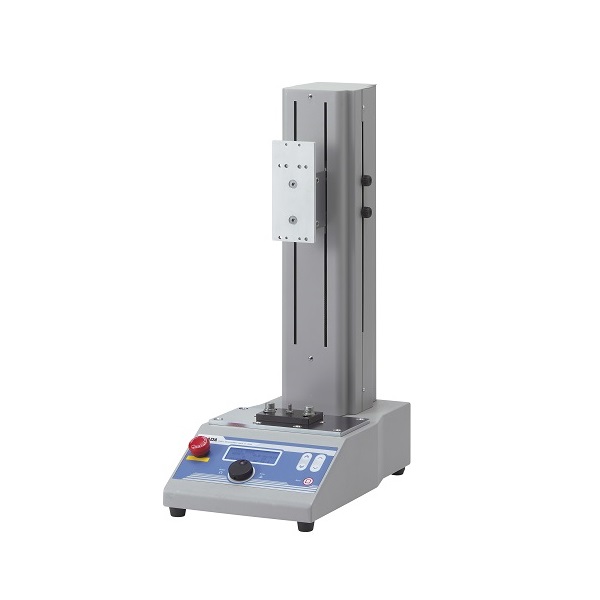

IMADA MX2-2500N Motorized Test Stands

Capacity: 2500N

Speed:

Digital 10 to 300mm/min

[10 - 20mm/min: by 0.5mm/min]

[20 - 100mm/min: by 5mm/min]

[100 - 300mm/min: by 10mm/min]

Max. Sample Height: Approx. 320mm

Rigidity

[Standard models] less than 0.5mm,

[Long stroke (optional)] less than 1.0mm

Stroke Limit: Controllable with upper and lower knob

Measuring Modes: Manual / Jog / Cycle mode

Control: Emergency stop, force control, overload prevention

Operating temperature humidity: 0 ~ 40°C, 35 ~ 70% (avoid condensation)

Voltage: AC100 to 240V, 50/60Hz (Select from 100, 120 and 230V. Accessories are provided accordingly.)

Power Consumption: 50W

Weight: 26kg
