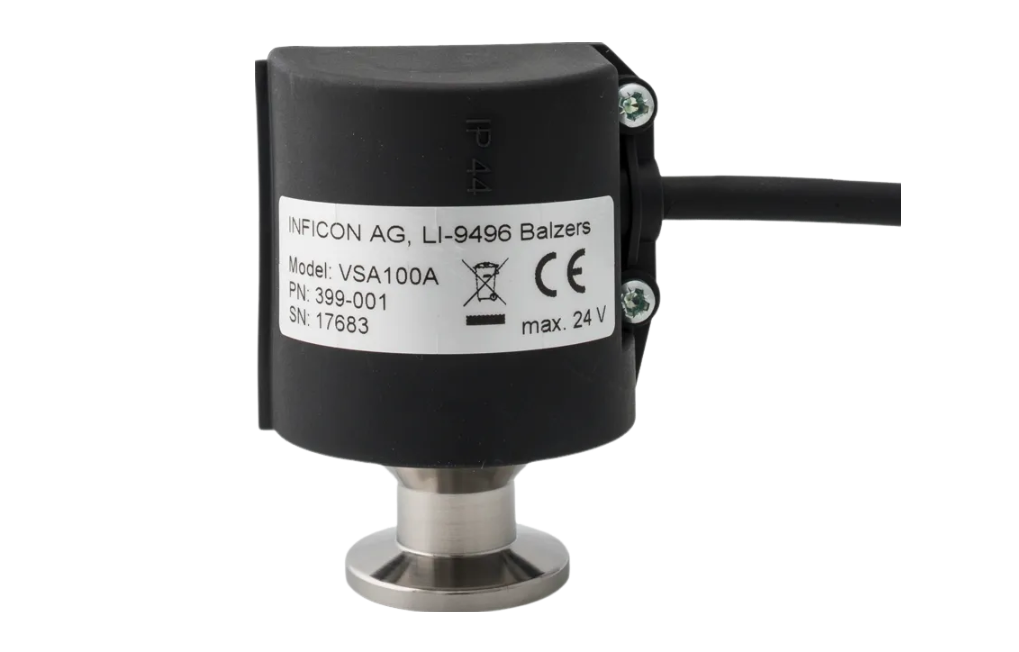

Switching pressure: 6 ± 2 mbar (below atmosphere)
Back switching: 3 ± 2 mbar (below atmosphere)
Operating pressure (absolute): <2 bar
Helium permeation: 5 x10-5 mbar l/s
Operation Temperature: 0 ... +85 °C
Storage Temperature: -20 ... +85 °C
Switching contacts (gold plated): Change over contact
Voltage max.: 24 V (dc) / 24 V (ac)
Current max.: 30 mA (24 V (dc)) / 100 mA (24 V (ac))
Load min.: 1 mA
Electrical connector: Cable, bare wire
Cable length, standard: 3 m (9.9 ft.)
Vacuum connection: DN 16 ISO-KF
Protective type: IP 44
Mounting orientation: Vertical (standing)
Internal volume: 2 cm3 (0.122 in.3)
Materials exposed to vacuum: Stainless steel 1.4305, EPDM, PTFE (Teflon)
Weight: 315 g
