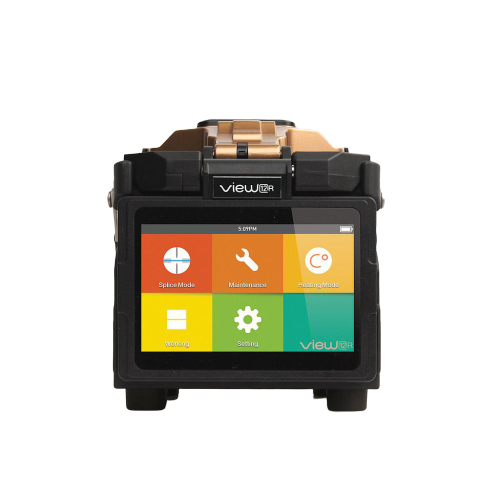

INNO VIEW 12R Arc Fusion Splicer (Splicing Time:Ribbon fiber:15s/Single fiber:9s )
Manufacturer: INNO Model: VIEW 12R - Contact
Weight :1.98kg without battery / 2.64kg with battery
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable : Ribbon : 0.25~0.4 mm / Single : 250μm & 900μm
Fiber Count : 1, 2, 4, 6, 8, 10, 12
Fiber Holder : Replaceable
(12 Ribbon : FH-12, 8 Ribbon : FH-8, 4 Ribbon : FH-4, 250&900μm Single : FH-U, SOC Holder : FH-SOC-R )
Fiber Diameter : Cladding: 125μm
Fiber Cleave Length : 10~13 mm
Splice mode: Max 100 modes
Typical Splice Loss: SM: 0.05dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB (ITU-T Standard)
Return Loss: >>60dB
Lighting: 3 White LEDs
Splicing Time: Ribbon fiber : 15 sec / Single fiber : 9 sec
Estimated Splice Loss: Available
Heat Oven/Heating Time : Heat Mode: Max 32 modes / typical heating time: 20 sec
Applicable Protection Sleeve Length : 20mm, 30mm, 40mm, 50mm, 60mm
Results Storage : The last 5,000 splice records and last5,000 splice result
images Tension Test : 1.96~2.25N
Operating Condition : Operating Altitude: 0~3,660m above sea level, 0~95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition : 0~95% relative humidity, -40~80°C, Battery: -20~ 30 °C
Size/ Color : 160H x 133W x 155D mm (including rubber bumper) / champagne gold
Display : 90° bi-directional view, 5.0” color high resolution (800 x 480) display
Fiber View & Magnification : X, Y, XY, X/Y : 250X Magnification
Power Supply : AC Input 100-240V, DC Input 9-14V
No. of splice/Heating with Battery : 9000mAh Battery Capacity, Typical 220 times (Splice+Heat)
Electrode Life : 1,500 arcs, can be extended by using an electrode grinder
Terminal : USB Type-C
Operation Methods : Button / Touch screen
Automatic Calibration : Automatic arc calibration by air pressure and temperature
PACKAGE:
FUSION SPLICER View 12R: 1
BATTERY PACK LBT-30: 1
THERMAL STRIPPER TS-8: 1
V-GROOVE CLEANING BRUSH CB-01: 1
HIGH PRECISION CLEAVER V7: 1
POWER CABLE ACC-25: 1
FIBER HOLDER VFH-40 : 1
12 Ribbon : FH-12L/FH12R
8 Ribbon : FH-8L/FH8R
4 Ribbon : FH-4L/FH4R
250&900μm Single : FHUL/FH-UR(Universal)
SOC Holder : FH-SOC-R
AC ADAPTER JS-180300: 1
SOC HEATER COVER HT-SOC: 1
DIN Cable DIN-18: 1
COOLING TRAY CG-22: 1
USB CABLE USB Type-C : 1
ELECTRODE E-50: 2
PROTECTION SLEEVES PS-12R-40: 1
ELECTRODE GRINDER EG-18: 1
CARRYING CASE NBX-35: 1
