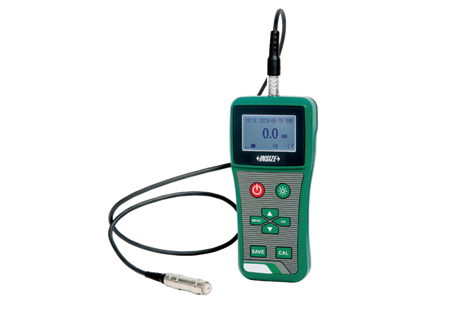

INSIZE 5402-TC21 Coating thickness gauge (advanced type) (0-3000µm)

Specification

Probe:FM (included) magnetic induction probe

Range:0-1500µm

Resolution:0.1µm (<100µm)

1µm (100µm~10000µm)

Accuracy*:

Zero calibration:±(1µm+2%L)

Multi-point calibration:±(1µm+1%L)

Measuring mode:single point measurement, scan mode, differential mode, average mode

Calibration mode:zero calibration, one-point callbration, two-point calibration, multi-point calibration

Minimum substrate thickness:0.5mm

Minimum measuring area:Ø7mm

Minimum curvature radius of convex workpiece:1.5mm

Data storage:500 groups

Interface:USB, Bluetooth

Operation temperature:-10°C~50°C

Power supply:3x1.5V AAA batteries

Dimension:150×70×30mm

Weight:160g

Probe:FL (optional) mid-range magnetic induction probe

Range:0-3000µm

Resolution:0.1µm (<100µm)

1µm (100µm~10000µm)

Accuracy*:

Zero calibration:±(1µm+3%L)

Multi-point calibration:±(1µm+2%L)

Measuring mode:single point measurement, scan mode, differential mode, average mode

Calibration mode:zero calibration, one-point callbration, two-point calibration, multi-point calibration

Minimum substrate thickness:0.5mm

Minimum measuring area:Ø7mm

Minimum curvature radius of convex workpiece:1.5mm

Data storage:500 groups

Interface:USB, Bluetooth

Operation temperature:-10°C~50°C

Power supply:3x1.5V AAA batteries

Dimension:150×70×30mm

Weight:160g

Probe:FX (optional) high-range magnetic induction probe

Range:0-10000µm

Resolution:0.1µm (<100µm)

1µm (100µm~10000µm)

Accuracy*:

Zro calibration:±(2µm+5%L)

Multi-point calibration:±(1µm+3%L)

Measuring mode:single point measurement, scan mode, differential mode, average mode

Calibration mode:zero calibration, one-point callbration, two-point calibration, multi-point calibration

Minimum substrate thickness:2mm

Minimum measuring area:Ø40mm

Minimum curvature radius of convex workpiece:10mm

Data storage:500 groups

Interface:USB, Bluetooth

Operation temperature:-10°C~50°C

Power supply:3x1.5V AAA batteries

Dimension:150×70×30mm

Weight:160g

Probe:FS (optional) low-range magnetic induction probe

Range:0-500µm

Resolution:0.1µm (<100µm)

1µm (100µm~10000µm)

Accuracy*:

Zero calibration:±(1µm+2%L)

Multi-point calibration:±(1µm+1%L)

Measuring mode:single point measurement, scan mode, differential mode, average mode

Calibration mode:zero calibration, one-point callbration, two-point calibration, multi-point calibration

Minimum substrate thickness:0.2mm

Minimum measuring area:Ø3mm

Minimum curvature radius of convex workpiece:1mm

Data storage:500 groups

Interface:USB, Bluetooth

Operation temperature:-10°C~50°C

Power supply:3x1.5V AAA batteries

Dimension:150×70×30mm

Weight:160g

Probe:FH (optional) high-temp magnetic induction probe

Range:0-3000µm

Resolution:0.1µm (<100µm)

1µm (100µm~10000µm)

Accuracy*:

Zero calibration:±(1µm+3%L)

Multi-point calibration:±(1µm+2%L)

Measuring mode:single point measurement, scan mode, differential mode, average mode

Calibration mode:zero calibration, one-point callbration, two-point calibration, multi-point calibration

Minimum substrate thickness:0.5mm

Minimum measuring area:Ø7mm

Minimum curvature radius of convex workpiece:1.5mm

Data storage:500 groups

Interface:USB, Bluetooth

Operation temperature:-10°C~50°C

Power supply:3x1.5V AAA batteries

Dimension:150×70×30mm

Weight:160g

Probe:NM (optional) eddy current probe

Range:0-1500µm

Resolution:0.1µm (<100µm)

1µm (100µm~10000µm)

Accuracy*:

Zero calibration:±(1µm+2%L)

Multi-point calibration:±(1µm+1%L)

Measuring mode:single point measurement, scan mode, differential mode, average mode

Calibration mode:zero calibration, one-point callbration, two-point calibration, multi-point calibration

Minimum substrate thickness:0.3mm

Minimum measuring area:Ø5mm

Minimum curvature radius of convex workpiece:3mm

Data storage:500 groups

Interface:USB, Bluetooth

Operation temperature:-10°C~50°C

Power supply:3x1.5V AAA batteries

Dimension:150×70×30mm

Weight:160g

*L is the measured value in µm.

Standard delivery

Main unit:1 pc

Magnetic induction probe (FM):1 pc

Zero calibration block for FM probe:1 pc

Calibration foils(12/50/100/250/500/1000μm):6 pcs

AAA battery:3 pcs

Software and USB cable:1pc

- Magnetic induction probe (FM) measures the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate.

Substrate: steel, iron, alloy, hard magnetic steel, etc.

Coating: zinc, aluminum, chrome, copper, rubber, paint, etc.

- Eddy current probe (NM) measures the thickness of non-conductive coating on non-magnetic metal substrate.

Substrate: copper, aluminum, zinc, tin, etc.

Coating: rubber, paint, plastic, anodized film, etc.

- Real-time temperature compensation guarantees high accuracy, thin plating and

oxide layer less than 20μm can be measured accurately

- Reduces the effects of electromagnetic interference and hand-held operation

- Probe can be re-matched after abrasion

- Tolerance measurement with adjustable alarm threshold

- USB and bluetooth interface for data transmission and online measurement in real-time

- Coupling status indication

- Support cable printer
