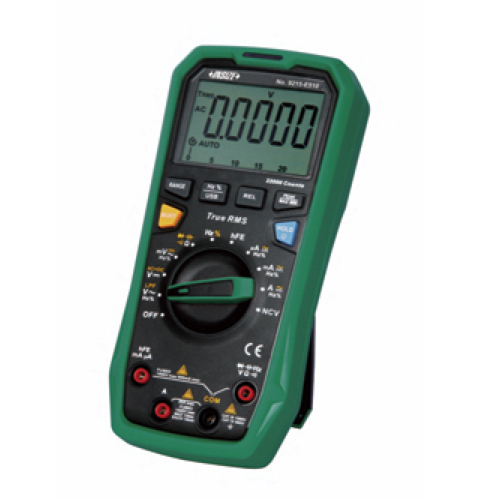

INSIZE 9215-E510 Digital Multimeter (True RMS)

DC Voltage:

Range / Resolution / Accuracy ("d" is the resolution)

220mV / 0.01mV / ±(0.1% + 5d)

2.2V-22V-220V/ 0.1mV-0.001V-0.01V / ±(0.05% + 5d)

1000V / 0.1V / ±(0.1% + 5d)

AC Voltage:

Range / Resolution / Accuracy("d" is the resolution)

220mV / 0.01mV / ±(1% + 10d) 40Hz~1kHz; ±(1.5% + 30d) 1kHz~10kHz

2.2V-22V / 0.1mV-1mV / ±(0.8% + 10d) 40Hz~1kHz; ±(1.2% + 50d) 1kHz~10kHz

220V / 10mV / ±(0.8% + 10d) 40Hz~1kHz; ±(2% + 50d) 1kHz~10kHz

1000V / 0.1V / ±(1.2% + 10d) 40Hz~1kHz; ±(3% + 50d) 1kHz~10kHz

DC Current:

Range / Resolution / Accuracy("d" is the resolution)

220μA-200μA-22mA-220mA / 0.01μA-0.1μA-0.001mA-0.01mA / ±(0.5% + 10d)

20A / 0.001A / ±(1.2% + 50d)

AC Current

Range / Resolution / Accuracy("d" is the resolution)

220μA-2200μA / 0.01μA-0.1μA / ±(0.8% + 10d), 40Hz~1kHz; ±(3.0% + 50d), 1kHz~10kHz

22mA-220mA-20A / 0.001mA-0.01mA-0.001A / ±(1.2% + 10d), 40Hz~1kHz; ±(3.0% + 50d), 40Hz~1kHz

Resistance

Range / Resolution / Accuracy("d" is the resolution)

2200Ω-2.2kΩ-22kΩ-220kΩ / 0.01Ω-0.0001ΚΩ-0.001ΚΩ-0.01ΚΩ / ±(0.5% + 10d)

2.2MΩ / 0.0001MΩ / ±(0.8% + 10d)

22MΩ / 0.001MΩ /±(1.5% + 10d)

220MΩ / 0.01MΩ /±(3.0% + 50d)

Capacitance

Range / Resolution / Accuracy("d" is the resolution)

22nF-220nF-2.2μF-22μF / 0.001nF-0.01nF-0.0001μF-0.001μF / ±(3.0% + 5d)

220μF-2.2mF / 0.01μF-0.0001mF / ±(4.0% + 5d)

22mF / 0.001mF / ±(10% + 5d)

220mF / 0.01mF / ±(20% + 5d)

Frequency:

Range / Resolution / Accuracy("d" is the resolution)

10Hz~220MHz / 0.01Hz~0.01MHz / ±(0.01% + 5d)

Duty Cycle:

Range / Resolution / Accuracy("d" is the resolution)

0.1%–99.9% / 0.1% / ±(2.0% + 5d)

Transistor hFE: 1β–1000β

Diode Test: Open Circuit Voltage: 3V

Continuity Check: <50Ω

Power Supply: 4x1.5V AAA batteries

Dimensions: 186×89×49mm

Weight: 400g

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Test lead: 2 pcs

USB connection cable: 1 pc

Conversion plug (Transistor): 1 pc

Battery (AAA): 4 pcs
