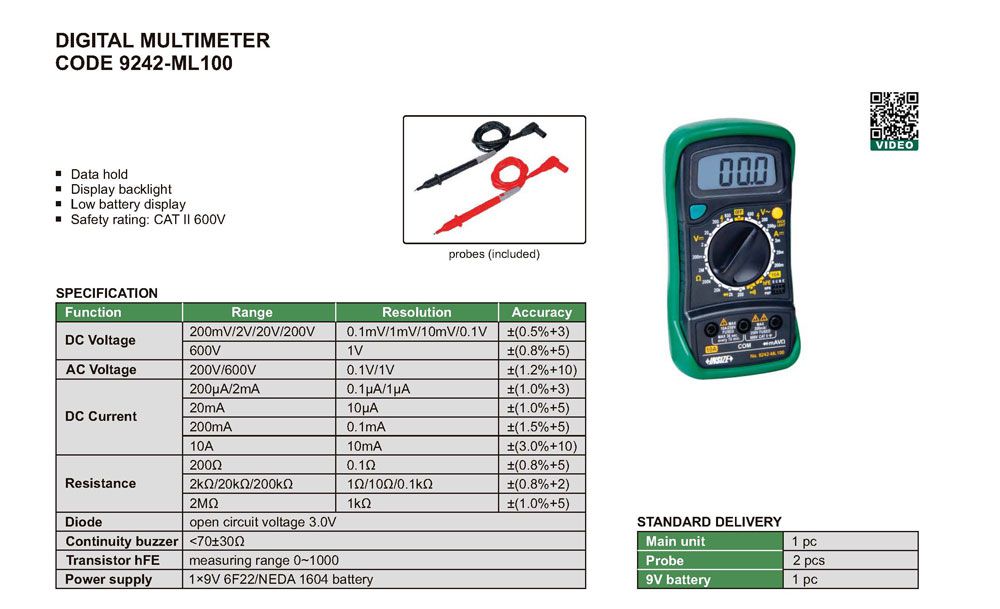

DC Voltage:
-Range: 200mV/2V/20V/200V/600V
-Resolution: 0.1mV/1mV/ 10mV/0.1V/1V
-Accuracy: ±(0.5%+3) or ±(0.8%+5) for range 600V
AC Voltage:
-Range: 200V/600V
-Resolution: 0.1V/1V
-Accuracy: ±(1.2%+10)
DC current:
-Range: 200μA/2mA; Resolution: 0.1μA/1μA; Accuracy: ±(1.0%+3)
-Range: 20mA; Resolution: 10μA; Accuracy: ±(1.0%+5)
-Range: 200mA; Resolution: 0.1mA; Accuracy: ±(1.5%+5)
-Range: 10A; Resolution: 10mA; Accuracy: ±(3.0%+10)
Resistance
-Range: 200 Ω; Resolution: 0.1 Ω; Accuracy: ±(0.8%+5)
-Range: 2kΩ/20kΩ/200kΩ; Resolution: 1Ω/10Ω/0.1 kΩ; Accuracy: ±(0.8%+2)
-Range: 2 MΩ; Resolution: 1kΩ; Accuracy: ±(1.0%+5)
Diode: open circuit voltage 3.0V
Continuity buzzer: <70± 30Ω
Transistor hFE: measuring range: 0~1000
Power supply: 2x1.5V AAA batteries
Standard delivery:
-Main unit: 1pc
-Probe: 2pcs
-9V battery: 2pcs
