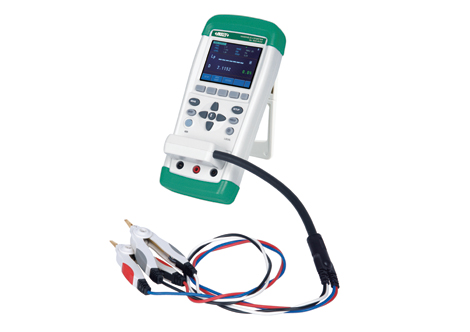

Specification
Measuring parameters:C-D, C-Q, C-R, L-D, L-Q, L-R, L-Rdc, R-Q, R-X, R-Rdc, Rdc, Z-D, Z-Q, Z-er, Z-ed
Range:8 levels, auto range or hold range
Basic accuracy:0.2%
Test frequency:50Hz, 60Hz, 100Hz, 120HZ, 200Hz, 400Hz, 500Hz, 1kHz, 2kHz, 4kHz, 5kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz
accuracy: 0.02%
Signal level:0.1V, 0.3V, 0.7V, 1V; accuracy: 10%
Test speed:slow 2.5 times/sec, fast 10 times/sec
Interface:USB-C Interface: support HID and VCOM communication, compatible with SCPI command
Operation environment:0°C-40°C, <80%RH
Working time:50% brightness: 9h; 100% brightness: 7h
Power supply:rechargeable Li-ion battery
Power:<1.5W
Dimension:195x90x41mm
Weight:380g
Standard Delivery
Main unit:1pc
Kelvin clip lead:1pc
SMD tweezers lead:1pc
Short-circuit plate:1pc
■ Automatic measure inductance (L), capacitance (C), resistance (R), impedance (Z), quality factor (Q), dissipation factor (D), phase (0) and DC resistance (DCR)
■ Internal trigger
■ Data hold
■ Full range open and short compensation
■ Equivalent circuit: series and parallel
■ Compare main parameter with nominal value and display percent deviation
■ Built in USB-C interface for data transmission and charging
■ Language: English, Chinese
■ LCD touch screen with adjustable backlight
■ Automatic power off
