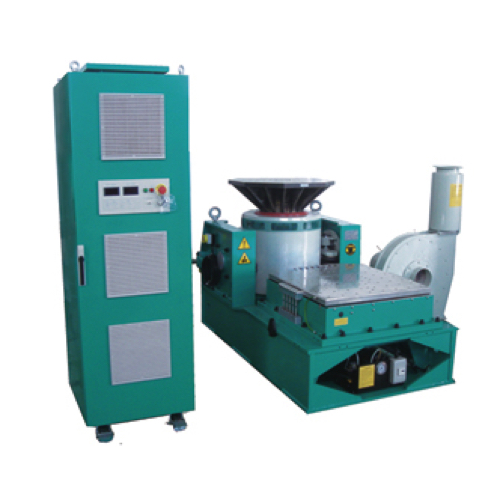

INSIZE EDV-AC4000 Electrodynamic Vibration Systems (4000kgf, 8000kgf, 5Hz~3000Hz)

System parameter:

Rated sine/random force: 4000kgf

Shock force: 8000kgf

Frequency range: 5Hz~3000Hz

Max. acceleration: 100g

Max. velocity: 2.0m/s

Max. displacement (P-P): 51mm

Max. load: 500kg

Shaker:

Armature diameter: 440mm

Armature resonance: 2500Hz ±5%

Effective armature mass: 30kg

Inserts size: M10

Load attachment points: 17

Natural frequency: <3Hz (thrust axis)

Stray magnetic field: ≤1mT (at 152mm above table)

Dimension: 1270×980×1135mm

Weight: 2500kg

Power amplifier:

Rated output capacity: 40KVA

Signal to noise ratio: ≥65dB

Amplifier efficiency: ≥90%

System protection: Multiple

Dimension: 610×900×2000mm

Weight: 520kg

Cooling fan:

Power: 15KVA

Air flow: 1.1m³/s

Air pressure: 0.0077 MPa

Air duct diameter/length: Ø200×4500mm

Dimension: 1050×897×1970mm

Weight: 320kg

Operation temperature: 0°C~40°C

Operation humidity: 0%RH~90%RH (non-condensing)

System power supply: 3φ, AC 400V ±10%, 50/60Hz

System power: 76KVA

Compressed air requirement: 0.6MPa

Can be customized according to test requirements

STANDARD DELIVERY:

Main unit: 1 pc

Shaker: 1 pc

Amplifier: 1 pc

Cooling fan: 1 pc
