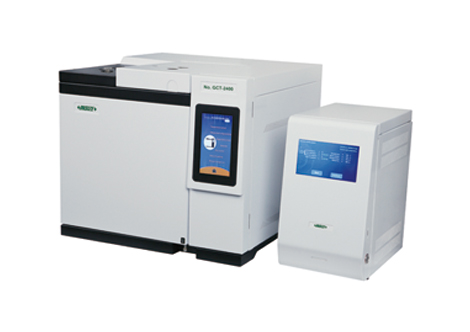

INSIZE GCT-2400 Gas chromatography (ROHS2.0 O-Benzene fast sifter) (0-0.25Mpa (pressure), 0-1000ml/min (flow rate))
Manufacturer: INSIZE Model: GCT-2400 - Contact
Specification
Analysis material: DI(2-ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (DBP), Dibutyl phthalate(BBP), Diisobutyl phthalate(DIBP)
Temperature control area: 8 signals
Temperature control range: Above room temperature 4-450°C, incremental 1°C, accurate: ±0.1°C
Program temperature rise step: 20th step
Program temperature rise rate: 0.1-60°C/min
Measurement range: 0-0.25Mpa (pressure), 0-1000ml/min (flow rate)
Injection valve: Automation
Sampler type: Capillary injection
Capillary column: Ø0.53mmx30mx0.50μm (shunt)
Detector: Hydrogen Flame lonization Detector (FID)
Detection limit: ≤3x10-12g/S (n-hexadecane)
Baseline noise: ≤1×10-14A (after 2 hours of instrument stabilization)
Baseline drift: ≤1×10-13A/30min (after 2 hours of instrument stabilization)
Linear range: ≥10°
Carrier gas: N2≥99.995%
Natural gas: H2≥99.995%
Combustion gas: Dry oil-free air
Data processing: Dedicated data workstation, can support multiple chromatographs of multiple channels of data processing at the same time (up to support 5000 chromatographs access), can automatically generate chromatograph folder, time folder, as well as according to the time, frequency or sequence of the named spectra file functions
Communication interface: Ethernet: IEEE802.3
Working environment: 5-35°C, 0-85%RH
Power: AC220V±10%, 50Hz (±0.5Hz), 3KW
Dimension (LxWxH): 600×560×500mm
Weight: 55kg
Standard Delivery:
Main unit: 1 pc
Computer: 1 pc
Thermal cracker: 1 pc
Software: 1 pc
Standard sample: 1 set
Air generator: 1 set
Hydrogen generator: 1 set
Consumable and spare parts: 1 set*
*Including injection needles, injection pads, graphite pads, gas connection lines and other common consumables and tools
■ The instrument adopts modularized structure design, easy and convenient maintenance, with no pre-treatment, no chemical reagents, no waste liquid and gas, no need for environmental assessment, convenient and quick, accurate screening and other advantages, general sample testing in 20 min
■ 7-inch color LCD touch screen, a new temperature control system, high precision temperature control, superior reliability and anti-interference performance, with the column box automatic back door system, near room temperature control ability has been improved, faster heating or cooling speed, each heating control unit has over-temperature protection function
■ With network remote control function, make the instrument in unattended, decentralized monitoring, centralized control become a reality. Adopting 100G or Gigabit Ethernet communication interface, built-in IP stack, the instrument can realize long-distance data transmission through the internal LAN and Internet, which is convenient to set up the laboratory, simplify the configuration of the laboratory, and facilitate the management of analytical data
