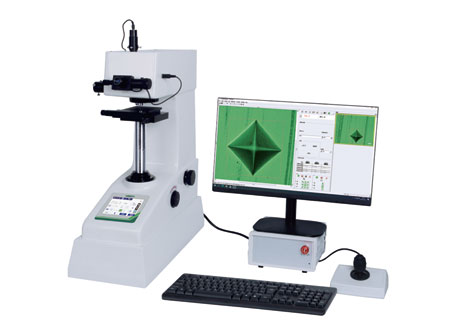

INSIZE HDT-AVH10 Automatic vickers hardness tester (0.3kgf, 0.5kgf, 1kgf, 3kgf, 5kgf, 10kgf)
Manufacturer: INSIZE Model: HDT-AVH10 - Contact
Test force: 0.3kgf, 0.5kgf, 1kgf, 3kgf, 5kgf, 10kgf
Vickers scales: HV0.3, HV0.5, HV1, HV3, HV5, HV10
Converted scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Range: 5~3000HV
Length measurement resolution: 0.01µm
Objective/indenter switch: motor driven turret
Stage lifting: manual/electric
Focus mode: Z-axis autofocus
Load control: automatic (load/dwell/unload)
Load dwell time: 1~60 second
Objective: 10X, 20X
Eyepiece: 10X
Total magnification: 100X (for measurement or observation), 200X (for measurement)
Max. workpiece height: 160mm
Max. testing width: 130mm (from the center of indenter to the wall of main body)
Pixel: 5M
Communication interface: RS232
Power supply: 220V, 50/60Hz
Dimension: 630×300×800mm
Weight: 75kg
Main unit: 1pc
10X, 20X objective: 1pc of each
Vickers indenter: 1pc
Hardness test block: 2pc
Automatic X-Y stage drive box: 1pc
Vickers hardness measurement system: 1pc
Computer: 1pc
Anti-dust cover: 1pc
■ Suitable for vickers hardness determination of various metals and non-metal materials, effective depth and heat affected area measurement, especially suitable for measuring workpieces hardness gradient distribution curve and surface hardness after heat treatment, effective hardening layer depth
■ Automatic switch between the indenter and objective lens
■ Z-axis automatic focus, X, Y axis automatic movement, can be for multi-point continuous measurement
■ Automatic moving table by built-in step motor, high positioning accuracy, good repeatability, fast moving speed, high efficiency
■ Automatic moving table bidirectional movement, equipped with safety devices to avoid misoperation
■The software can control the hardness tester hardware operation, two-way communication with each other
The image acquisition device has fast reaction speed, high automatic measurement accuracy and good repeatability
■The system can automatically generate Word or Excel test report, and the report template can be modified According to ISO 6507
