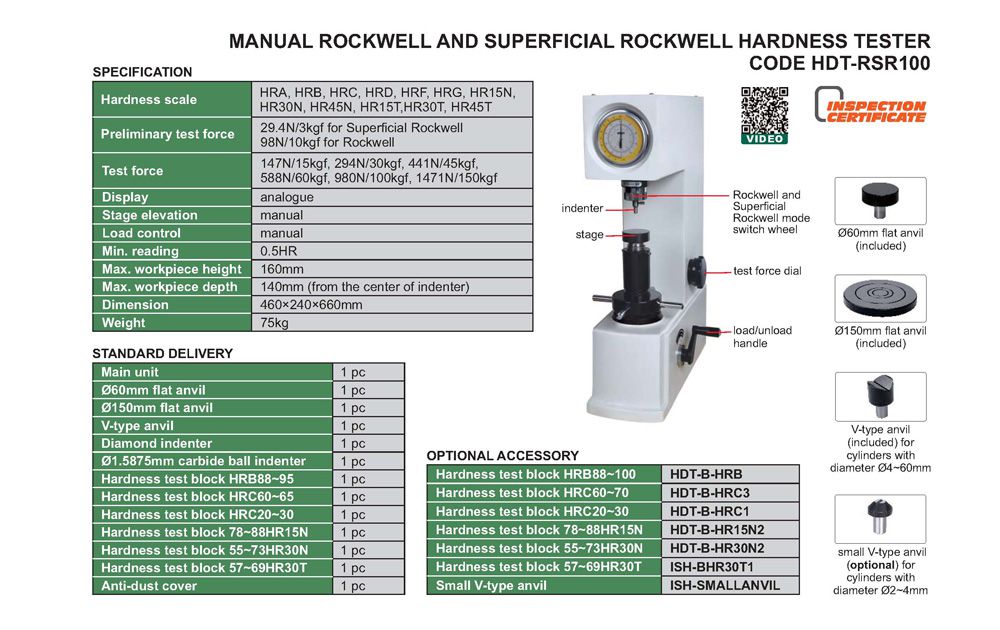

Hardness scale:HRA, HRB, HRC, , HRD, HRF, HRG, RH15N, RH30N, RH45N, RH15T, RH30T, RH45T
Preliminary test force: 29.4N/3kgf for Superficial Rockwell; 98N/10kgf for Rockwell
Total test force: 147N/15kgf; 294N/30kgf; 441N/45kgf; 588N /60kgf; 980N/100kgf; 1417N/150kgf
Display: analogue
Stage elevation: manual
Load control: manual
Min. reading: 0.5HR
Max. workpiece height: 160mm
Max. workpiece depth: 140mm (from the center of indenter to the main body)
Dimension: 460x240x660mm
Weight: 75kg
Standard delivery:
-Main unit: 1pc
-Φ60mm flat anvil: 1pc
-Φ150mm flat anvil: 1pc
-V-type anvil: 1pc
-Diamond indenter: 1pc
-Φ1.5875mm carbide ball indenter: 1pc
-Hardness test block HRB88~95: 1pc
-Hardness test block HRC20~30: 1pc
-Hardness test block HRC60~65: 1pc
-Hardness test block 78~88HR15N: 1pc
-Hardness test block 55~73HR30N: 1pc
-Hardness test block 57~69HR30T: 1pc
-Anti-dust cover: 1pc
Optional accessory:
-Hardness test block HRB88~95
-Hardness test block HRC20~30
-Hardness test block HRC60~65
-Hardness test block 78~88HR15N
-Hardness test block 55~73HR30N
-Hardness test block 57~69HR30T
-Small V type anvil
