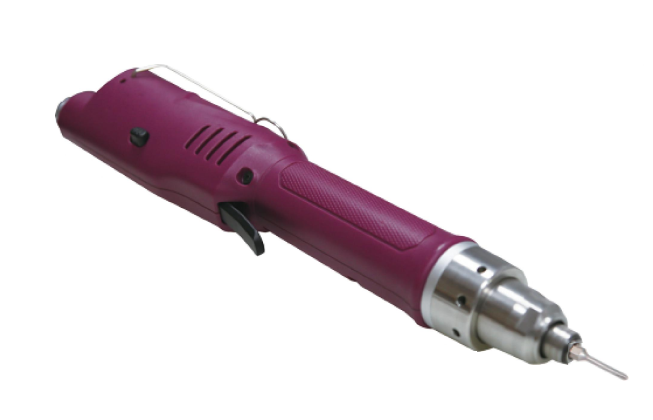

INSIZE HES-E903B Intelligent electric screwdrivers (current control) (1.00~5.50Nm)

Standard Delivery

Electric screwdriver:1pc

Controller: 1pc

Cross screwdriver:1pc

Tool connection cable:1pc

USB transmission cable:1pc

Specification

Code:HES-E903B

Torque range:1.00~5.50Nm

Motor power:AC90W

Max. speed:1200rpm

Applicable screw outside diameter:4.0~6.0mm

Applicable screwdriver head:Ø6.35mm hexagonal

Controller:type B

Power Supply:AC 200 ~ 230V ± 10%, 50 ~ 60HZ

Display operation interface:touch screen menu operation mode, 3 function buttons+3 LED indicators

Torque accuracy:± 5% at 30% ~ 80% of maximum output torque, ± 8% in other range

Dimension:
electric screwdriver: 317x59.5 × 47.5mm
Controller: 235 × 160 × 345mm

Weight:
electric screwdriver: 1060g
controller: 5500g

■ Highly efficient heat dissipation setting, ultra-low noise handling

■ Permanent magnet synchronous servo motor and high-precision reducer power transmission mechanism

■ High-precision angle sensor (resolution 1°) and two-color LED indication of locking status

■The safety level conforms to the relevant provisions of GB3883/IEC60745 and other standards

■ 12 task modes, each task can be configured with 8 different torque parameters

■ Locked data is stored in EXCEL on the hard disk for 600 days

■ Built-in servo drive for precise control of torque, angle and speed

■ Provide graphical tool for process optimization and diagnostic

■ Provide programmable IO and RS485 communication port for process control and data transmission

■ Physical buttons for assisted operation and they are monitored by LED lights
