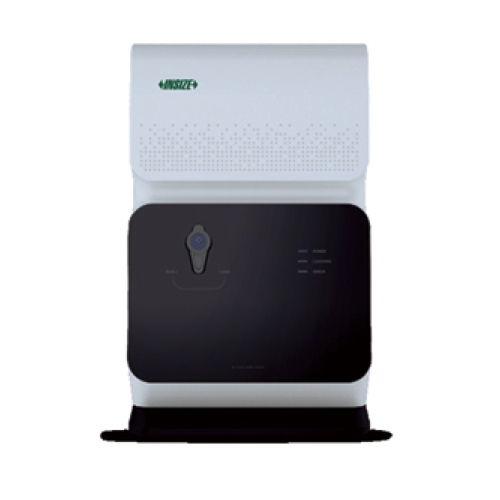

INSIZE HLZ-1000 Ion Chromatography (0~35000µS/cm)

Analysis Materials: Cations (Li+, Na+, NH4+, K+, Mg2+, Ca2+), anions (F, Cl, Br, NO2, SO4, ClO2, BrO3, ClO3), organic acids.

Detector: Thermostatic auto-range conductivity detector, detection range 0~35000µS/cm, detection resolution 0.0020nS/cm.

Detection Limit: Cl≤0.0005µg/mL, Li+≤0.0005µg/mL.

Linearity: ≥0.999.

Maximum Pressure: 10MPa.

Infusion Pump: High-pressure double piston pump, flow range 0.001–9.999mL/min.

Allowable Error: ≤0.25%.

Flow Stability: ≤0.3%.

Suppressor: Electrochemical suppression technology, removes 200µeq/min (anion), 100µeq/min (cation).

Pressure Resistance: 2MPa (no leakage up to 6MPa).

Temperature Range: Ambient temperature +5°C to 60°C, accuracy ±1°C.

Temperature Stability: ≤0.1°C/h.

Auto-sampler: 120 vial positions (2mL), maximum input volume 1000μL.

Injection Precision: RSD ≤ 0.3% (full loop injection).

Dimensions: 310×400×530mm, weight 22kg.
