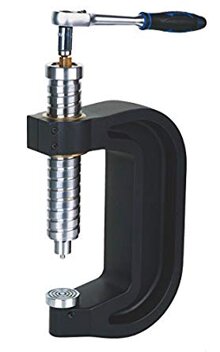

SPECIFICATION:
Measuring range:
- 100~350HBW (with Ø7.26mm indenter, included)
- 350~650HBW (with Ø4mm indenter, optional)
Test force: 1580kg
Accuracy :
- static test: ±3%
- impact test: ±5%
Measuring microscope: 20X, graduation 0.01mm
Max. workpiece height in static test: 150mm
Max. workpiece depth in static test: 80mm (from the center of indenter)
Dimension: 195×60×350mm
Weight : 4.2kg
STANDARD DELIVERY: Static test clamp, Impact test clamp, Flat anvil, V-type anvil, Ø7.26mm indenter, Hardness test block, Pin, Measuring microscope
