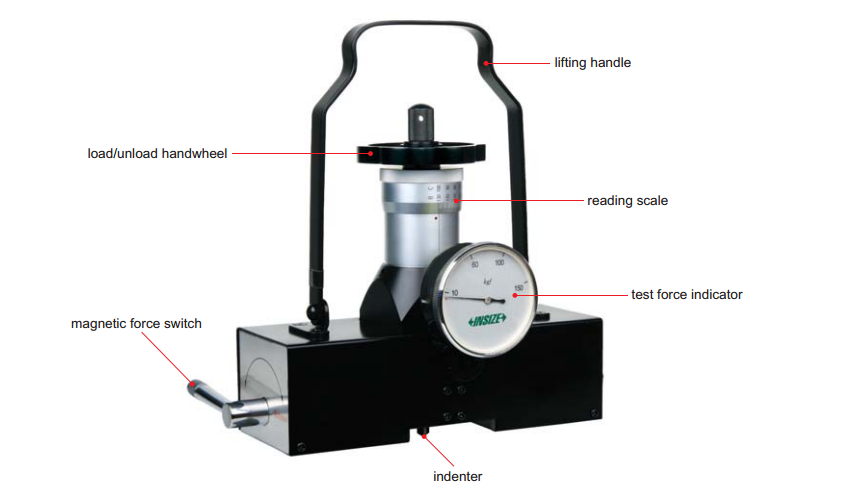

INSIZE ISHR-B141: Magnetic Brinell/Rockwell Hardness Tester

SPECIFICATION:

Rockwell scale: HRA, HRB, HRC, HRD, HRF, HRG

Brinell measuring range: 20~650HBW

Rockwell test force: 10kg preload, 60kg, 100kg, 150kg total load

Brinell test force: 62.5kg, 125kg, 187.5kg

Load control: manual

Min. Rockwell reading : 1 HR

Measuring microscope: 40X, graduation 0.01mm

Flat workpiece requirement: length>180mm, width>60mm, thickness>5mm

Cylinder and tube workpiece requirement: length>180mm, diameter>Ø50mm, thickness>8mm

Dimension: 220×70×220mm

Weight:  4.7kg

STANDARD DELIVERY : Main unit , Flat anvil, Support (4pc), Diamond Rockwell indenter, Ø1.5875mm carbide ball indenter, Ø2.5mm Brinell indenter, Hardness test block HRB85-95 , Hardness test block HRC60-70 , Hardness test block HRC20-30, Brinell test block, Measuring microscope, Magnifier with LED
