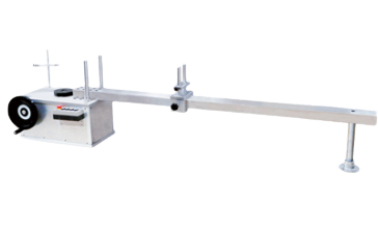

INSIZE IST-07TS3000 Semi-automatic torque wrench test stand (3000N.m)
Manufacturer: INSIZE Model: IST-07TS3000 - Contact
Max. torque value (manual load): 3000N.m
Arm length: 420~2050 mm
Power supply: 220V, 50Hz
Dimension: 2400×480×630 mm
Weight: 135 kg
Can be customized according to test requirements.
Details
- Motorized load (constant speed of applied torque): maximum torque up to 1000N.m for testing torque wrenches and reducing test time
- Manual load (adjustable speed of applied torque): maximum torque up to 3000N.m for testing torque wrenches
- Easy operation due to the gear box
- The slide can be moved to adjust different length of torque wrenches and the support plate can be adjusted to keep the wrench level
- Used with digital torque testers IST-TT series (optional)
