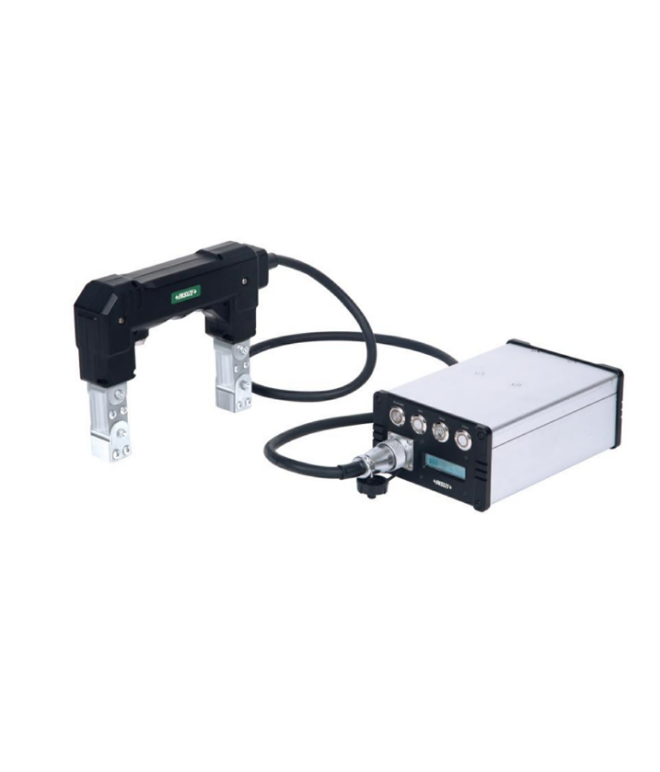

INSIZE MPI-CX50 Adjustable frequency magnetic powder flaw detector (3Hz; 10Hz; 20Hz (adjustable))

Frequency: 3Hz; 10Hz; 20Hz (adjustable)

Sensitivity:15/100 clearly displayed on A1 standard sensitivity test piece (20Hz)

Lifting Power:>=44N(20Hz)

Magnetic pole spacing:40-180mm

Lithium battery

voltage: 12V

current: 1-2.4V

life: 4-6h

charging time: <6h

Operation temperature:-10-40°C

Dimension(LxWxH):220×42×175mm

Weight:2.3kg

■ Deep penetration of the magnetic field, which allows the detection of artificial cracks from the surface up to a depth of about 8 mm from the surface

■ For workpieces made of ferromagnetic materials with thin paint, plating, or other coverings on the surface, flaw detection can be performed without any treatment

■ Magnetization current using digital MCU to regulate phase inverter current, no demagnetization is required after flaw detection

■Low standby energy consumption, high efficiency, adjustable frequency

■ Compact size, light weight, portable type
