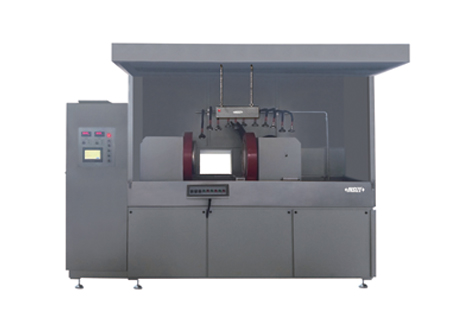

INSIZE MPI-FX200 Fluorescent Magnetic Powder Flaw Detector (AC: 0~2000A)

Specification

Circumferential magnetizing currentAC: 0~2000A

Longitudinal magnetization potential:AC: 0~12000AT

Electrode spacing:100~600mm adjuctable (manual)

Magnetization sensitivity: 15/50 clearly displayed on A sensitivity test piece

Duty cycle≥25%, continuous magnetization time maximium 3s

Magnetization method:circumferential magnetization, longitudinal magnetization, compound magentization

Clamping method:pneumatic clamping

Running mode:pneumatic/manual

Electrode plate:Ø160mm

Magnetizing coil:coil inner diameter Ø200mm two, coil turns 6 turns

Demagnetization:automatic attenuating demagnetization, residual magnetism ≤0.3mT

UV (Light) Lux:≥2000uW/cm² (calibration at the distance of 381mm)

Power supply:380V three-phase alternating current, 50Hz

Air supply: 0.4~0.7MPa

Operation environment:temperature: -5~45°C, relativehumidity: ≤90%

Dimension (LxWxH):main unit: 2600x850x1700mm, including darkroom dimension: 2800x1600x2200mm

Weight:700kg

Standard Delivery

Electrical control system:1pc

Magnetized power system:2pc

Spray system:1pc

Magnetic suspension recovery device:1pc

Ultraviolet flaw detection lamp:1pc

Demagnetization system:1pc
