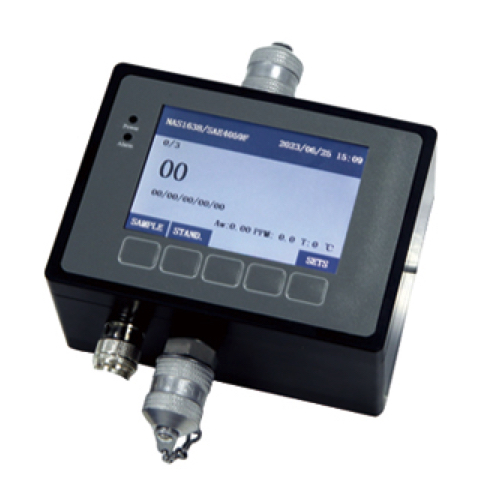

INSIZE PSC-ZX100M Online Oil Particle Counter (5~500ml/min, IP67)

Protection level: IP67

Light source: Semiconductor laser

Flow range: 5~500ml/min

Particle size range: 1~1000μm

Limit coincidence error: 40000 particle/mL

Sample viscosity: ≤650cSt

Sensitivity: 1µm or 4µm(c)

Counting volume: 1~999ml

Counting accuracy: ±0.5 pollution levels

Test time interval: 1s~24h

Temperature of sample: 0~80°C

Working temperature: -20~60°C

Pipeline pressure: 0.1~10Mpa

Interface type: USB, RS232, RS485

Data storage: 1000 sets of data, supports U-disk storage

Power supply: AC 110-220V, 50~60Hz

Weight: 0.6kg

Dimension (W×H×D): 100×75×60mm
