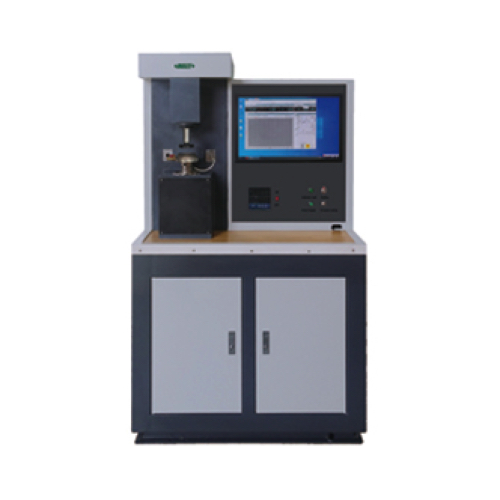

INSIZE STM-C1 Friction And Wear Testing Machine (1000N)

Maximum axial test force: 1000N

Accuracy of axial force: ±1%

Load rate of axial test force: 400N/min

Retention capacity of axial test force: ±1%

Range of friction sensor: 200N

Length of friction arm: 50mm

Maximum friction torque: 2.5N·m

Accuracy of friction torque: ±2%

Range of spindle speed: 5~2000r/min

Accuracy of spindle speed: ±1%

Taper of tester spindle: 1:7

Maximum distance between spindle and lower sub-disc: >75mm

Timekeeping device: 10s~9999min

Range of RPM counter: (1~99)×10^5 times

Dimension of main body: 860×740×1560mm

Weight: 550kg

Power supply: AC 220V, 50Hz

STANDARD DELIVERY:

Main unit: 1 pc

Pin and disc friction vice: 1 set

Computer: 1 pc

Printer: 1 pc

Datasheet
