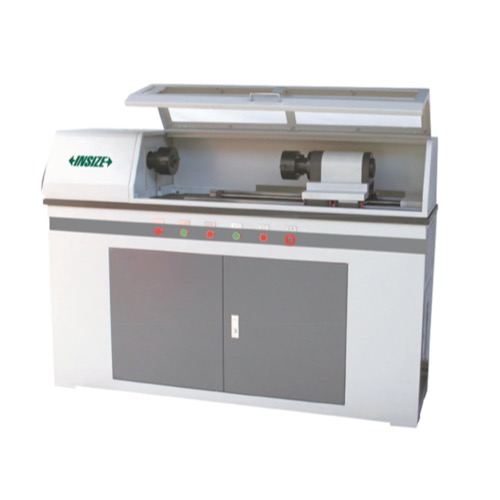

INSIZE UTM-TT5000 Electronic Torsion Testing Machines (5000N.m)

Max. test torque: 5000N.m

Type: B

Accuracy class: 1 class

Accuracy of test torque: ±1% of indicated value

Range of test torque: 2% ~ 100% FS

Min. resolution of test torque: 0.1N.m

Accuracy of torsion angle: ±1% of indicated value

Range of torsion angle: 0 ~ 9999°

Resolution of torsion angle: 0.01°

Rated speed of torsion angle: 1080°/min

Accuracy of torsion angle speed: ±1% of the set value

Accuracy of constant load torque: ±1% of the set value

Direction of torsion test: clockwise and counter-clockwise operation

Height of spindle center*: 203mm

Max. distance between collets*: 500mm

Dimension (W x D x H)*: 2350×740×1390mm

Weight*: 680kg

Power supply: AC 380V, 30, 50Hz, 2kW~4kW

*Can be customized to adjust according to test requirements
