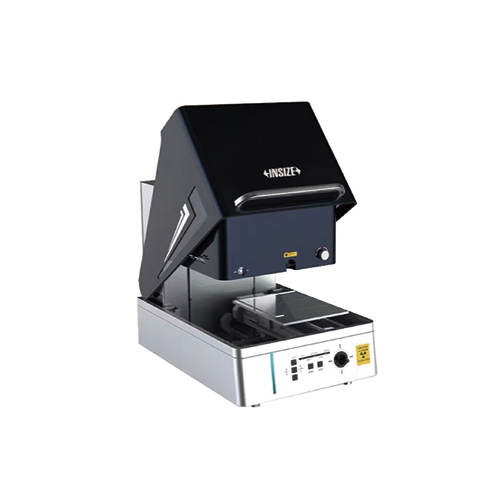

INSIZE XRF-FA350 Automatic Xrf Plating Thickness Instrument (Li(3)-U(92), 0.01~80µm)

Plating Analysis

Range of elemental analysis: Li(3)-U(92)

Detection limit: 0.005μm

Range of plating thickness: 0.01~80µm

Analysis time: 0~40s

Detector: High-efficiency proportional detector

X-ray device: Microfocus enhanced ray tube

Collimator: Ø0.2mm

Spot spread at the nearest measurement distance: <10%

Distance to zoom: 0~90mm

Sample observation: 1/2.7" color CCD with zoom functionality

Focusing method: High-sensitivity probe featuring imperceptible auto-focusing

Movement mode of sample stage: Automatic high-precision XY platform

Movement range of XY-axis: 210×245mm

Movement range of Z-axis: 145mm

Working temperature: 15°C~30°C, <70% RH

Power supply: AC 220V, 50Hz, 150W

Dimension (W×D×H): 535×760×635mm

Weight: 120kg

Datasheet

Standard Delivery

Main unit: 1 pc

Computer: 1 set

Printer: 1 pc

Accessory case: 1 pc

12 elemental tablets: 1 set

Ni standard sheet: 1 pc

Ag standard sheet: 1 pc
