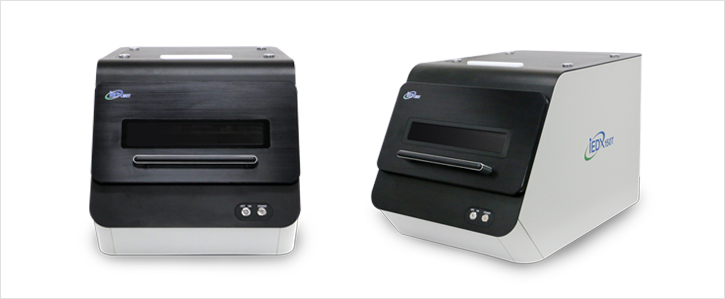

ISP iEDX-150μT30 Coating / Plating Thickness Analyzer (30um)
Manufacturer: ISP Model: iEDX-150μT30 Origin: Korea Guarantee: 12 Month - Request a Quotation
- Contact
X-ray tube: Mo Target
Detection System: SDD
Energy Resolution SDD: 125eV FWHM at Mn Kα
Collimator: Poly capillary optics(Focal Spot 30um) FWHM
Detection Element: Al(13) - U (92)
Sample Type: Solid / Liquid / Powder, Multi-layer
Size of the sample chamber: 390 X 410 X 100mm (W x D x H)
Voltage: 50 kV
Current: 1 mA
Beam direction: Top to down
Z stage: Yes
Standard Mode: Up to 5 layers thickness
Camera Magnification: 40~80x
Safety: 3 point interlock
Plating thickness measurement special, ENEPIG, Pd-Ni, Rh etc.
Plating analysis automobile parts, Electronic circuit board(PCB), Such as a capacitor
Analysis of single-layer, Multi-layer, Alloy plating
Thickness with Composition Ratio can be measure on time in alloy plating
