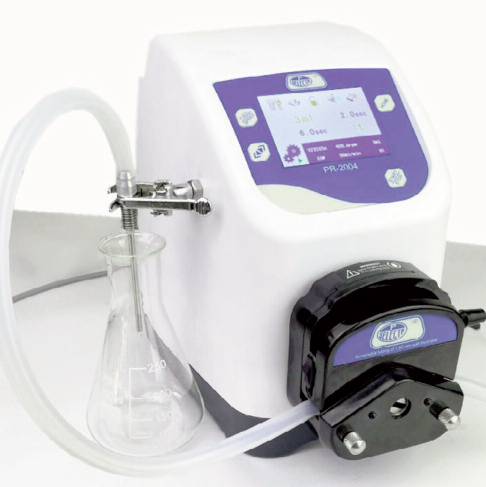

J.P. SELECTA PR- 2004 Peristaltic pump (0.1~2280ml/min)

FEATURES

Small tabletop model.

Silent and free from vibrations.

Clamp for holding the dosing tube.

Stainless steel nozzle. for precise dosing.

Dispense rate: The pump can dispense set volumes over a set time period.

Flow rate: The pump dispenses at a constant rate over a set time or continuous operation.

CONTROL PANEL

Touch screen.

Calibration memory.

Change pump direction, control from the panel.

Rotation direction indicator.

Foot switch connection for Start/Stop.

TECHNICAL SPECIFICATIONS

Speed (r.p.m.): 60-400

Resolution (ml): 1 or 0.1

Dispensing range (ml): 0.7 to 2280ml/min

Repetition interval: 1 - 9

Maximum tube wall (mm): 1.6

Maximum external tube diameter (mm): 12

Note: The precision depends on the tube Ø and the speed

Height/Width/Depth (exterior) cm : 25/14/24

Pump rate of H2O ml/min: 0.1 to 2280

Power W: 50

Weight Kg: 4.8

BACK

Main On/Off switch.

RS 232 and RS-485 connection.

Foot switch connection Start - Stop, for operation from a distance, supplied as an accessory.
